Rated Heating Capacity (kW): 12.20
Rated Heating Input (kW): 2.72
Rated Heating Current (A): 4.13
COP (W/W): 4.48
Rated Cooling Capacity (kW): 10.80
Rated Cooling Input (kW): 2.88
Rated Cooling Current (A): 4.37
EER (W/W): 3.75
Power supply (V/Phase/Hz): 380-415/3~/50
Rated Input Power (kW): 3.75
Rated Input Current (A): 5.7
High/Low cut-off pressure value (bar/bar): 32/1
Refrigerant Type/Charge/GWP(.../kg/...): R290/1.2/3
Refrigerant CO2 Equivalent (kg): 3.6
Waterproof Grade: IPX4
Electrical Shockproof: I
Noise (dB(A)): 54
Max. Water Outlet Temperature (°C): 75
Ambient Temperature Range (°C): -25~45

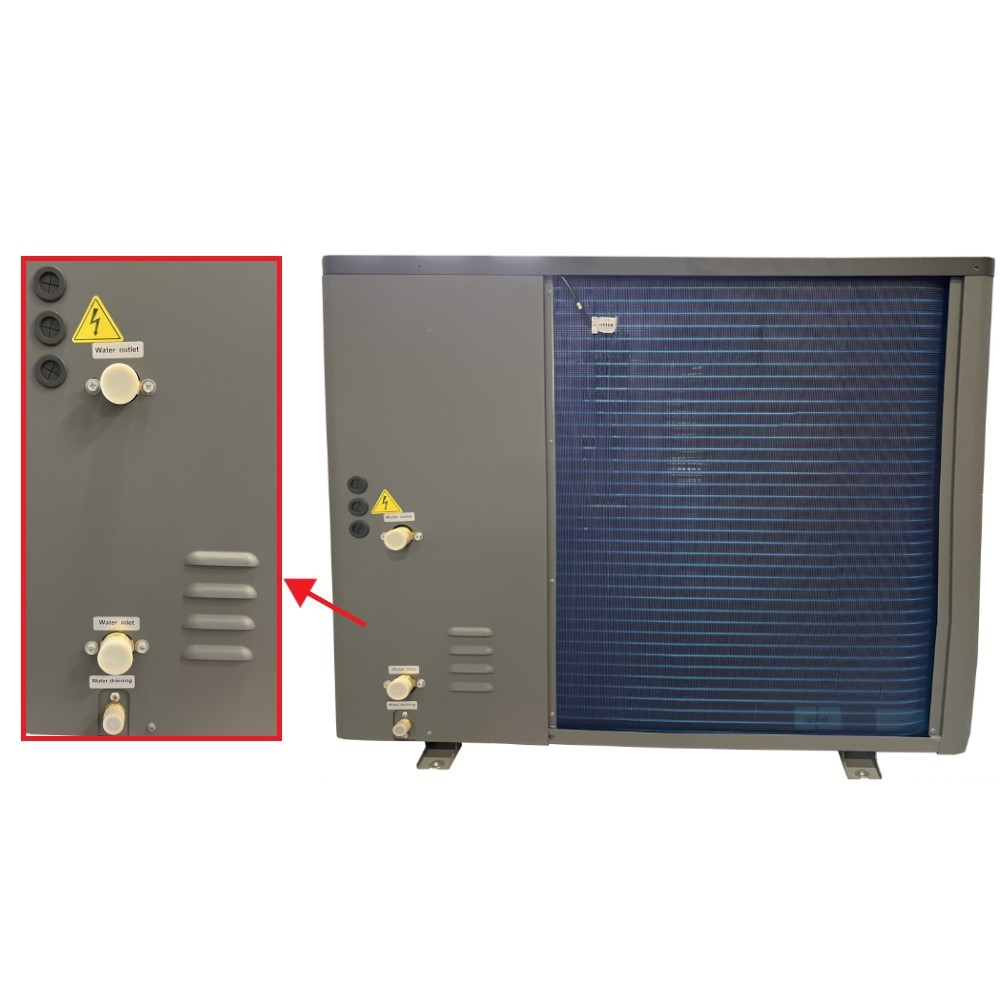

Diameter of Water Connections: DN25
Rated Water Flow(m3/h): 2.1
Internal Pressure Drop of Rated Water Flow (kPa): 50
Minimum/Maximum Pressure of Heating Water (bar/bar): 0.5/3
Dimensions (L/W/H) (mm): 1115/415/900
Net Weight (kg): 125
Test Conditions:
Heating: Ambient Temperature (°C): 7
Water Temperature (In/Out) (°C/°C): 30/35
Cooling: Ambient Temperature (°C): 35
Water Temperature (In/Out) (°C/°C): 23/18
