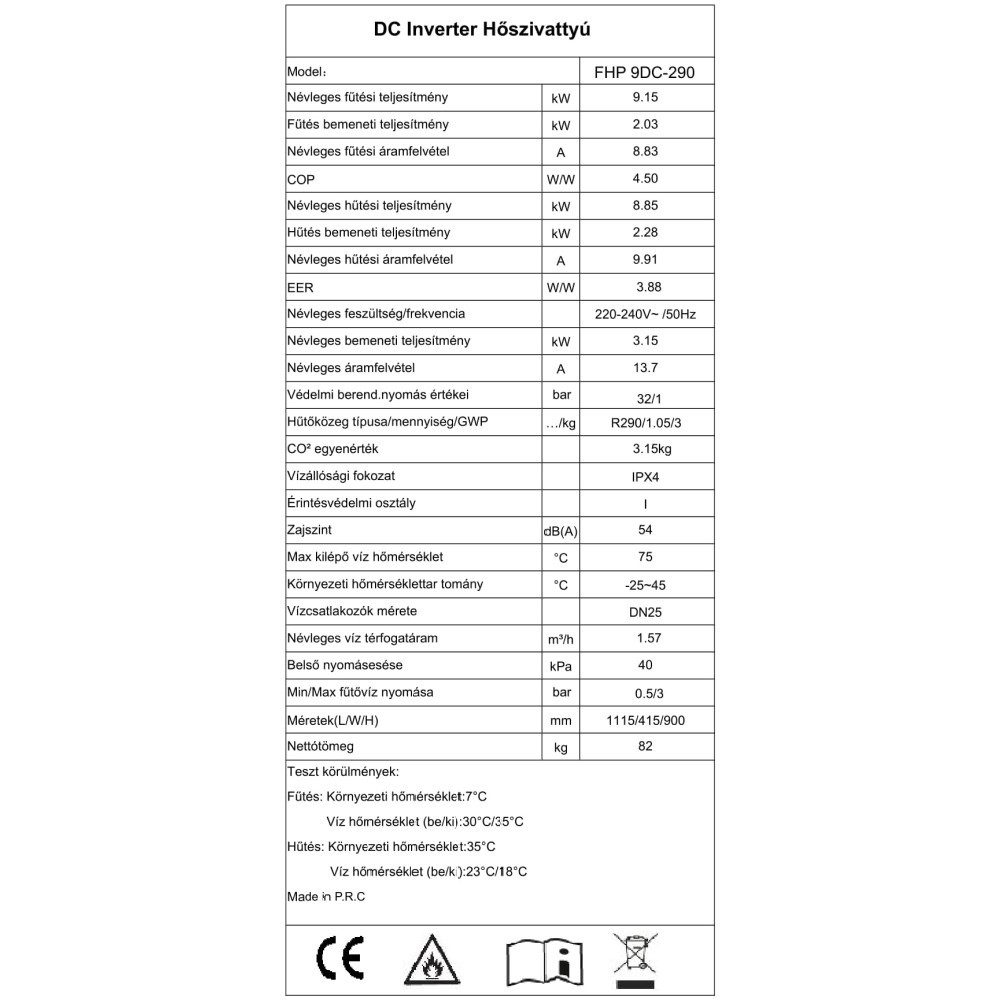

Rated Heating Capacity (kW): 9.15
Rated Heating Input (kW): 2.03
Rated Heating Current (A): 8.83
COP (W/W): 4.50
Rated Cooling Capacity (kW): 8.85
Rated Cooling Input (kW): 2.28
Rated Cooling Current (A): 9.91
EER (W/W): 3.88
Power supply (V~/Hz): 220-240/50
Rated Input Power (kW): 3.15
Rated Input Current (A): 13.7
High/Low cut-off pressure value (bar/bar): 32/1
Refrigerant Type/Charge/GWP(.../kg/...): R290/1.05/3
Refrigerant CO2 Equivalent (kg): 3.15
Waterproof Grade: IPX4
Electrical Shockproof: I
Noise (dB(A)): 54
Max. Water Outlet Temperature (°C): 75
Ambient Temperature Range (°C): -25~45
Diameter of Water Connections: DN25
Rated Water Flow(m3/h): 1.57
Internal Pressure Drop of Rated Water Flow (kPa): 40
Minimum/Maximum Pressure of Heating Water (bar/bar): 0.5/3
Dimensions (L/W/H) (mm): 1115/415/900
Net Weight (kg): 82
Test Conditions:
Heating: Ambient Temperature (°C): 7
Water Temperature (In/Out) (°C/°C): 30/35
Cooling: Ambient Temperature (°C): 35
Water Temperature (In/Out) (°C/°C): 23/18
