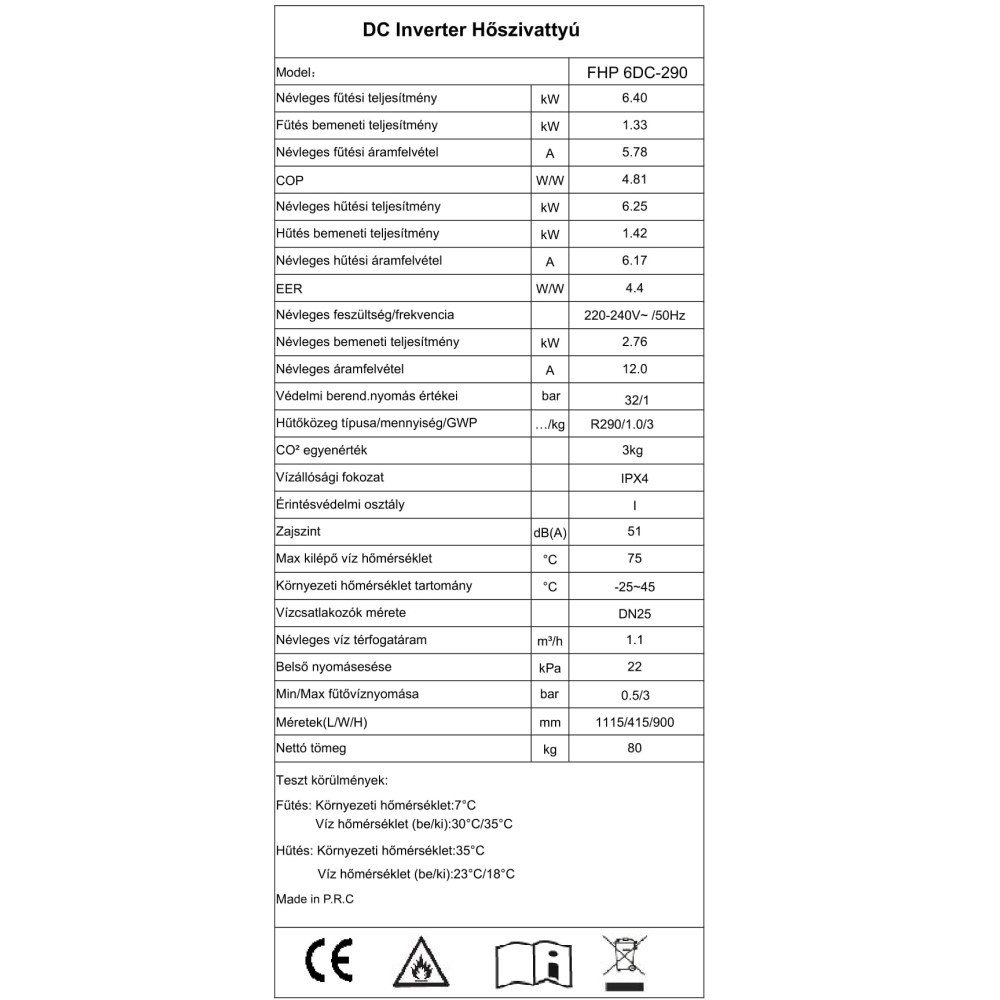

Rated Heating Capacity (kW): 6.40
Rated Heating Input (kW): 1.33
Rated Heating Current (A): 5.78
COP (W/W): 4.81
Rated Cooling Capacity (kW): 6.25
Rated Cooling Input (kW): 1.42
Rated Cooling Current (A): 6.17
EER (W/W): 4.4
Power supply (V~/Hz): 220-240/50
Rated Input Power (kW): 2.76
Rated Input Current (A): 12.0
High/Low cut-off pressure value (bar/bar): 32/1
Refrigerant Type/Charge/GWP(.../kg/...): R290/1.0/3
Refrigerant CO2 Equivalent (kg): 3
Waterproof Grade: IPX4
Electrical Shockproof: I
Noise (dB(A)): 51
Max. Water Outlet Temperature(°C): 75
Ambient Temperature Range(°C): -25~45

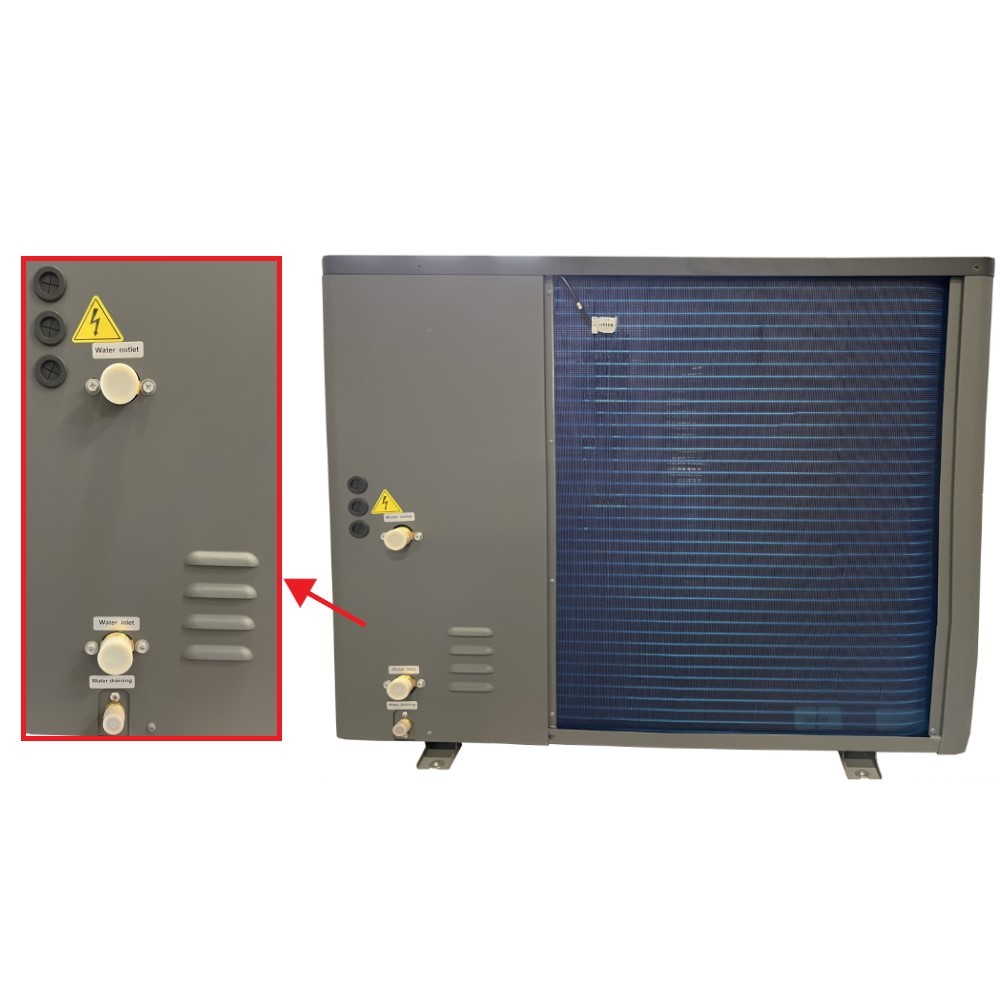

Diameter of Water Connections: DN25
Rated Water Flow(m3/h): 1.1
Internal Pressure Drop of Rated Water Flow (kPa): 22
Minimum/Maximum Pressure of Heating Water (bar/bar): 0.5/3
Dimensions (L/W/H): 1115/415/900 mm
Net Weight (kg): 80
Test Conditions:
Heating: Ambient Temperature (°C): 7
Water Temperature (In/Out) (°C/°C): 30/35
Cooling: Ambient Temperature (°C): 35
Water Temperature (In/Out) (°C/°C): 23/18
