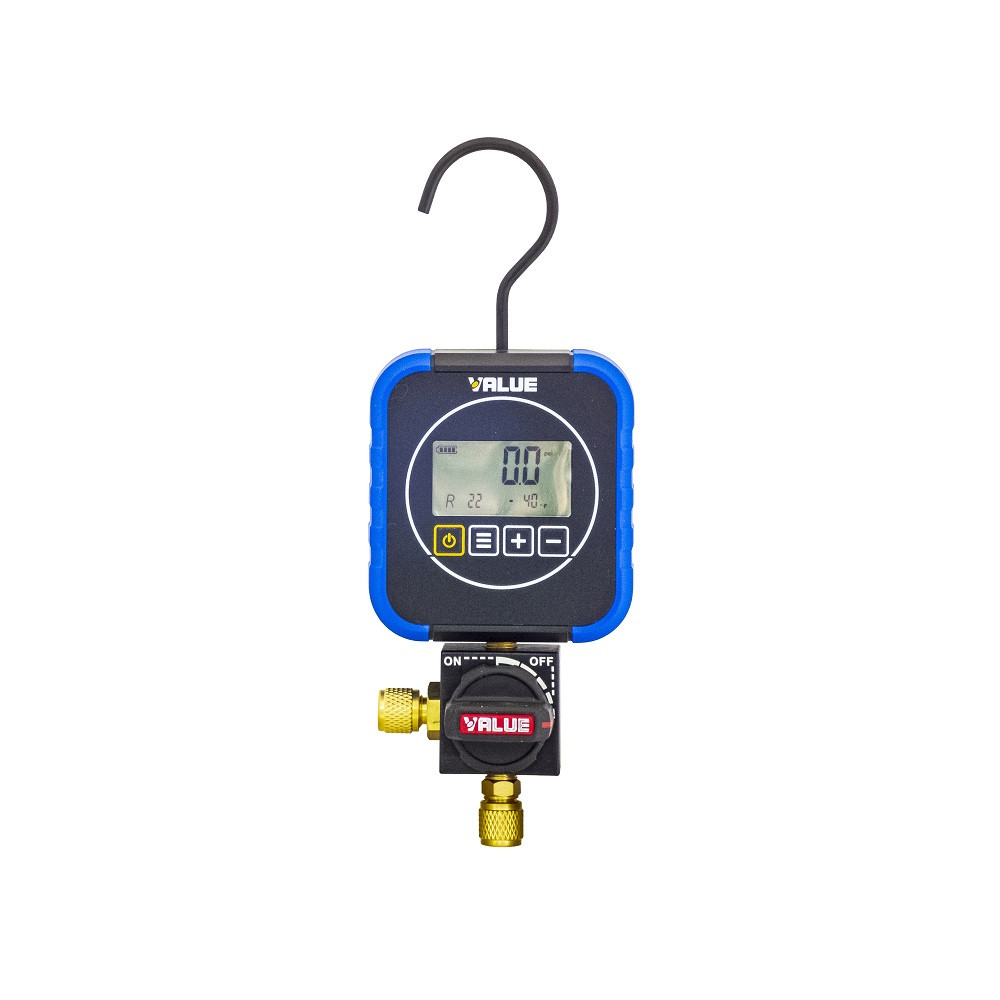

Manifold Gauge VRM1-0101I

Name: Manifold Gauge VRM1-0101I
SKU: 5813
Price: 157.65 EUR
Availability: InStock

Impact-resistant faucet with digital display in a plastic bag.

For charging R22, R32, R290, R410A, 1234yf, R134a, R404A, R407C, R507A refrigerants.
1 tap design.
Battery status display.

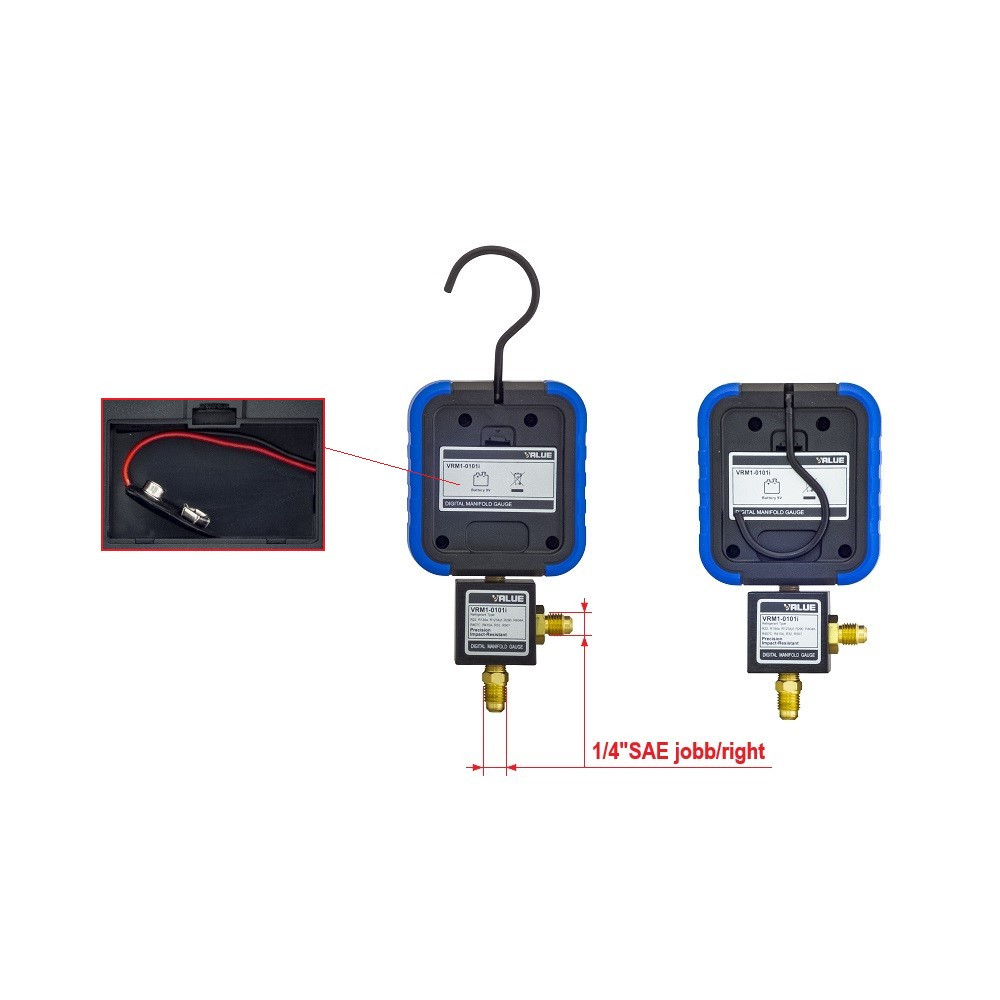

With 2x 1/4" SAE connections.

It is only suitable for vacuum measurement when using the inHg measurement unit.

Due to display capabilities, R1234yf refrigerant appears as R922B in the menu.

Learn more

In stock

157.65 € (124.14 €+33.52 €VAT)

Points earned after purchase: 4.73 €

Details

Units: psi, Bar, KPa, MPa, kgf/cm2.

Temperature display: C° / F°.

Vacuum display: inHg

Pressure scale (relative pressure): 0-50bar; 0-725psi; 0-5000kPa; 0-5Mpa; 0-51 kgf/cm²

Vacuum measurement range: -29.9~0 inHg

Maximum overpressure: 75bar; 750 kPa; 7.5Mpa; 1087 psi; 76.5kgf/cm²

Resolution: 0.1psi / 0.1bar / 1kPa / 0.001Mpa / 0.1kgf/cm²

Vacuum resolution: 0.1 inHg
Ambient temperature -10~50C°.
Power supply: 1 9V battery per instrument. Battery life approx. 20 operating hours.
Battery not included.

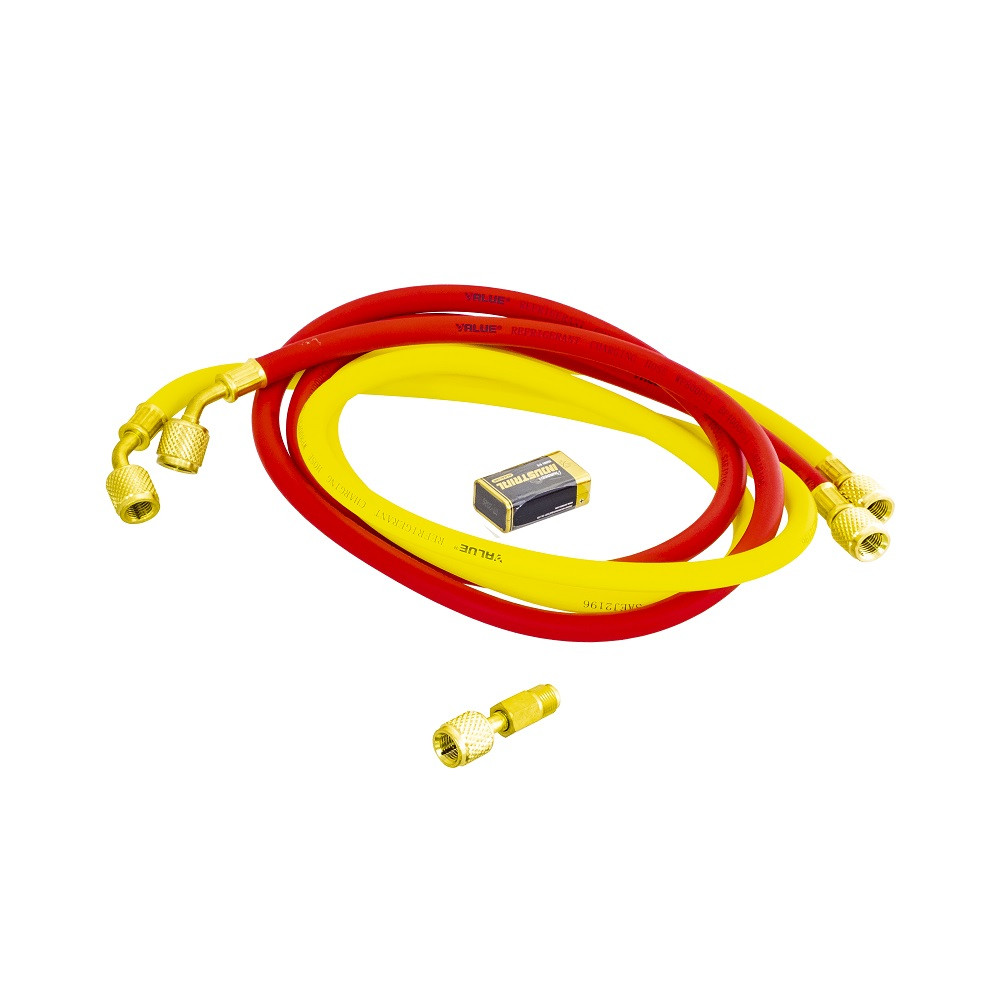

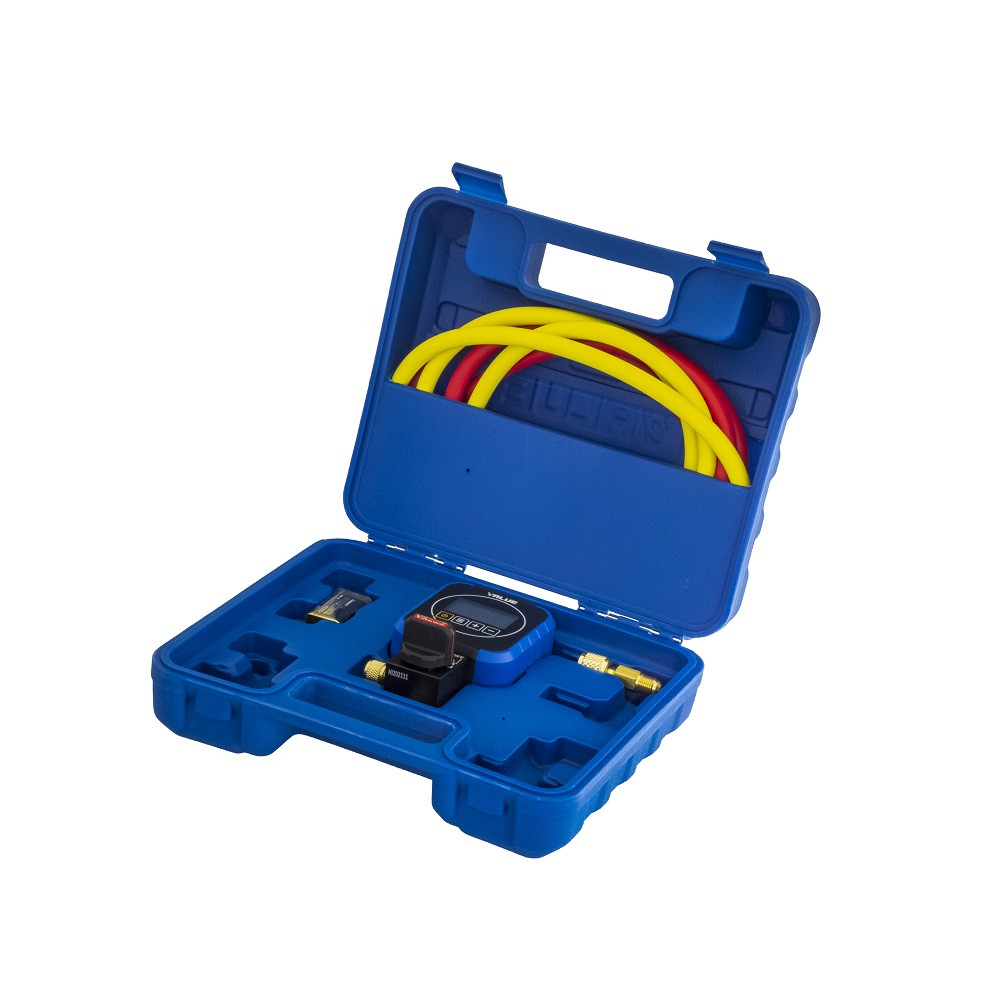

Contents of the bag:

-1 digital manometer VRM1-0101 (shock resistant)

-2 150cm hoses
Yellow: 1/4" SAE - with 1/4" SAE connectors.
Red: with 5/16" SAE - 1/4" SAE connectors.

-1 adapter (Dutch 1/4" + 5/16" external thread)

Weight: 400 gr. + accessories + packaging
Not suitable for measuring ammonia (R717)!

Data

Item number:

5813

Weight:

1.8 kg/db
