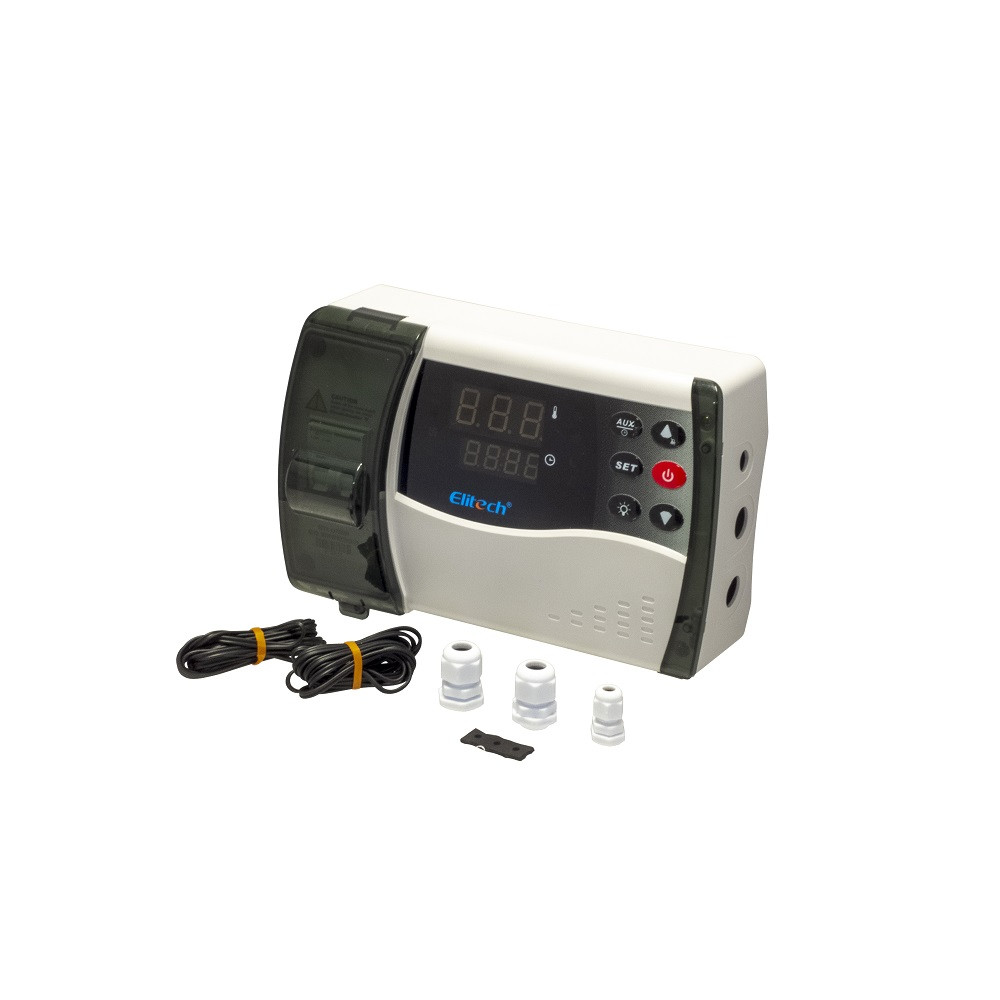

Temperature Controller ECB-1000S

ECB-1000S is widely used for the small and medium size cold storage, with the function of refrigeration, defrost, fan, light control, alarm and time display, with HACCP function, and it supports the communication of MODBUS-RTU.

Features:

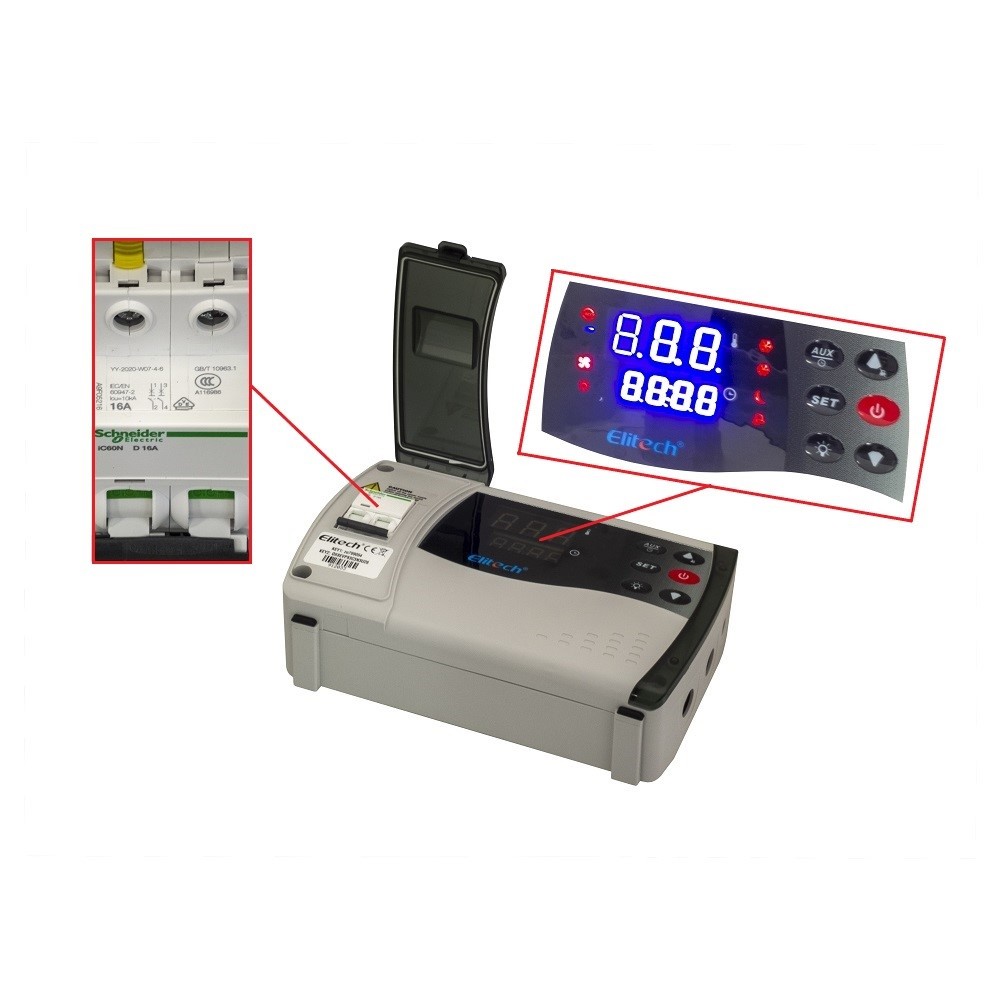

Super-Big display area shows all necessary information
Directly controls heavy loads with up to 3HP relay
Icon LEDs status display
Password Protection avoids accidental tampering by personnel
Real-Time-Clock really schedules and fixes defrost time
Defrost force function
Energy save function at night

Learn more

Out of stock

265.76 € (209.26 €+56.5 €VAT)

Out of stock

Points earned after purchase: 7.97 €

Details

Technical parameters::

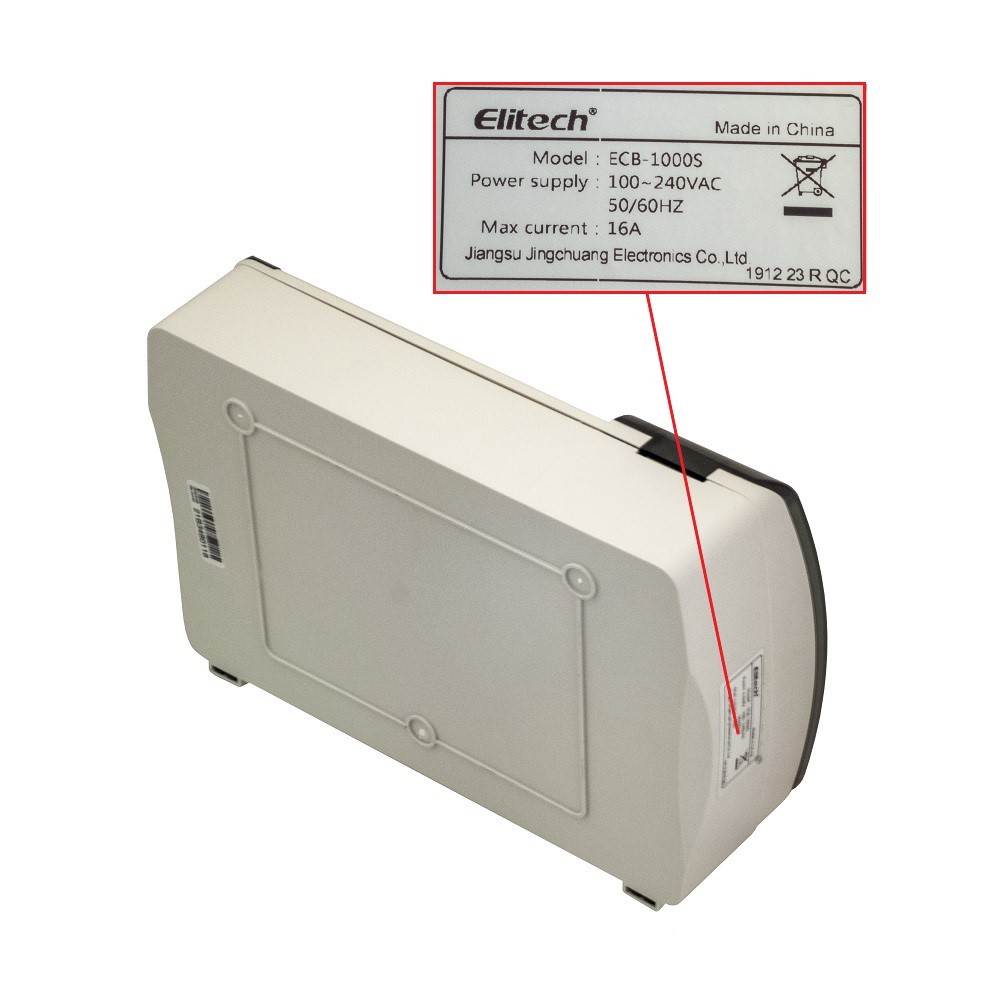

Power Supply: 100~240VAC, 50/60Hz
Power Consumption: Less than 5W
Temperature Measuring Range: -45°C ~ 99°C
Accuracy: ±1°C
Temperature Controlling Range: -40°C ~ 90°C
Resolution: 0.1°C/1°C vagy 1°F
Relay Capacity of Compressor:
- Compressor: 50A/240VAC (Max. capacity of controlling the compressor: 3HP)
- Defrost: 8A/220VAC
- Fan: 5A/220VAC (Max. capacity of controlling the fan: 500W)
- Light: 5A/220VAC (Max. capacity of controlling the light: 300W)
Alarm: 5A/220VAC
Storage Temperature: -20°C ~ 75°C
Work Temperature: -5°C ~ 60°C
Sensor Type: NTC (10kΩ/25°C, B-3435K)
