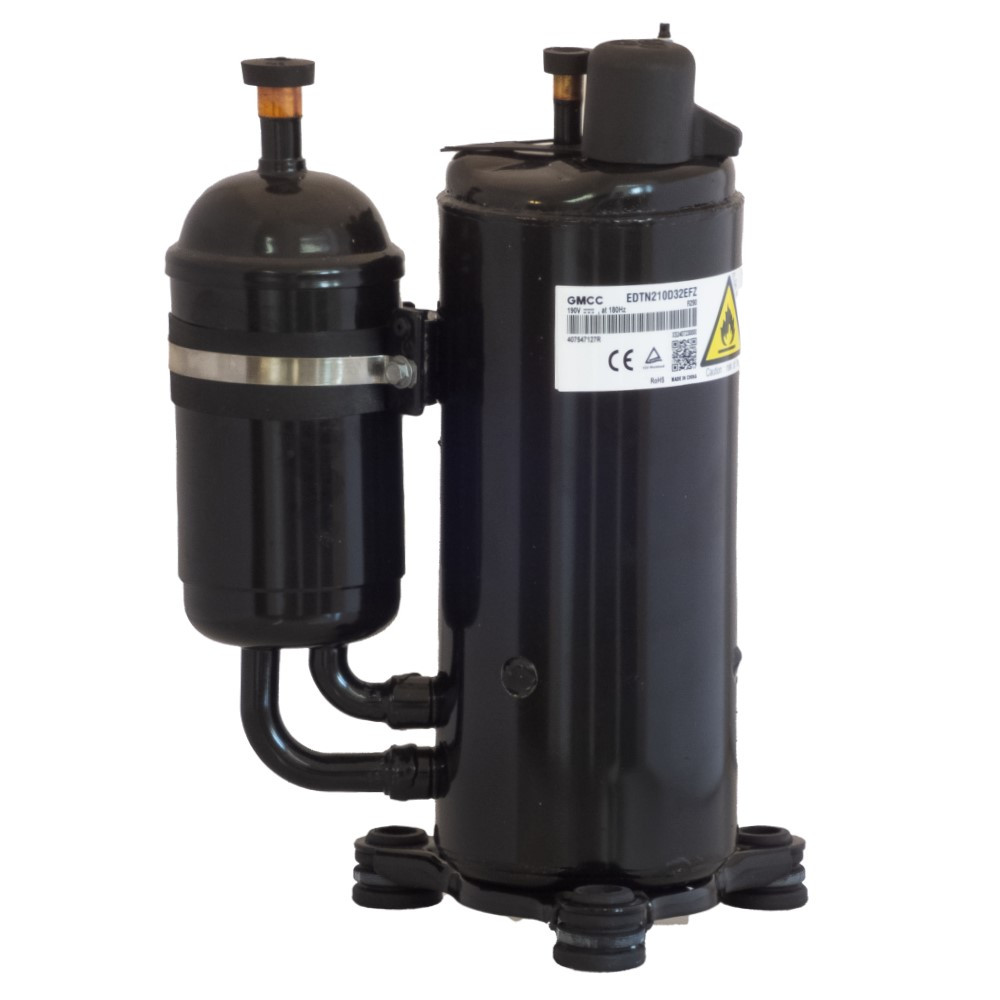

Heat pump 6KW-R290 compressor EDTN210D32EFZ

Name: Heat pump 6KW-R290 compressor EDTN210D32EFZ
SKU: 6363
Price: 397.85 EUR
Availability: InStock

A top-tier solution perfect for a diverse array of HEAT PUMP applications. With its robust 4.952 W capacity and remarkable coefficient of performance rating of 3,1, it guarantees unparalleled cooling and heating performance. The compact 21 cm3 displacement, coupled with cutting-edge ROTARY technology, ensures flawless operation.

Equipped with a reliable Internal motor protection system and utilizing XS-601C1 oil, this compressor delivers exceptional durability and reliability. Its thoughtfully designed VERTICAL layout and compact 280 mm height enable effortless integration into various HEAT PUMP systems. Compatible with R290 refrigerant, it handles maximum discharge temperatures of 115 ºC.

Learn more

In stock

397.85 € (313.27 €+84.58 €VAT)

Points earned after purchase: 11.94 €

Details

Capacity	4.952 W
COP	3,1
Displacement	21 cm3
Phase	1
Refrigerant	R290
Speed	12-120 rps
SAE/ODF	ODF
SG	YES
Tandem	NO
Inverter	YES
EVI	NO
HI-COP	NO
Technology	ROTARY
pressure	HT, MT
Motor protection type	Internal
Design	VERTICAL
CE	YES
UL	NO
Application	HEAT PUMP
Type of oil	XS-601C1
PED	I
Motor type	DC BRUSHLESS
Power supply	1-3 Φ, DC INVERTER
Height	280 mm
Sound level	67 dB
Rated current	6,2 A
Diameter	107 mm
Oil Charge	250 ml
Discharge Pressure	1,34 MPa
Suction Pressure	0,41 MPa
Tev	2,7 ºC
Tco	42,3 ºC
Suction Line	12,9 mm
Discharge Line	8,1 mm
SH	10,1 ºC
SC	8 ºC
Capacity Revolutions	90 rps
Maximum discharge temperature	115 ºC
Heating Capacity	5.667 W
