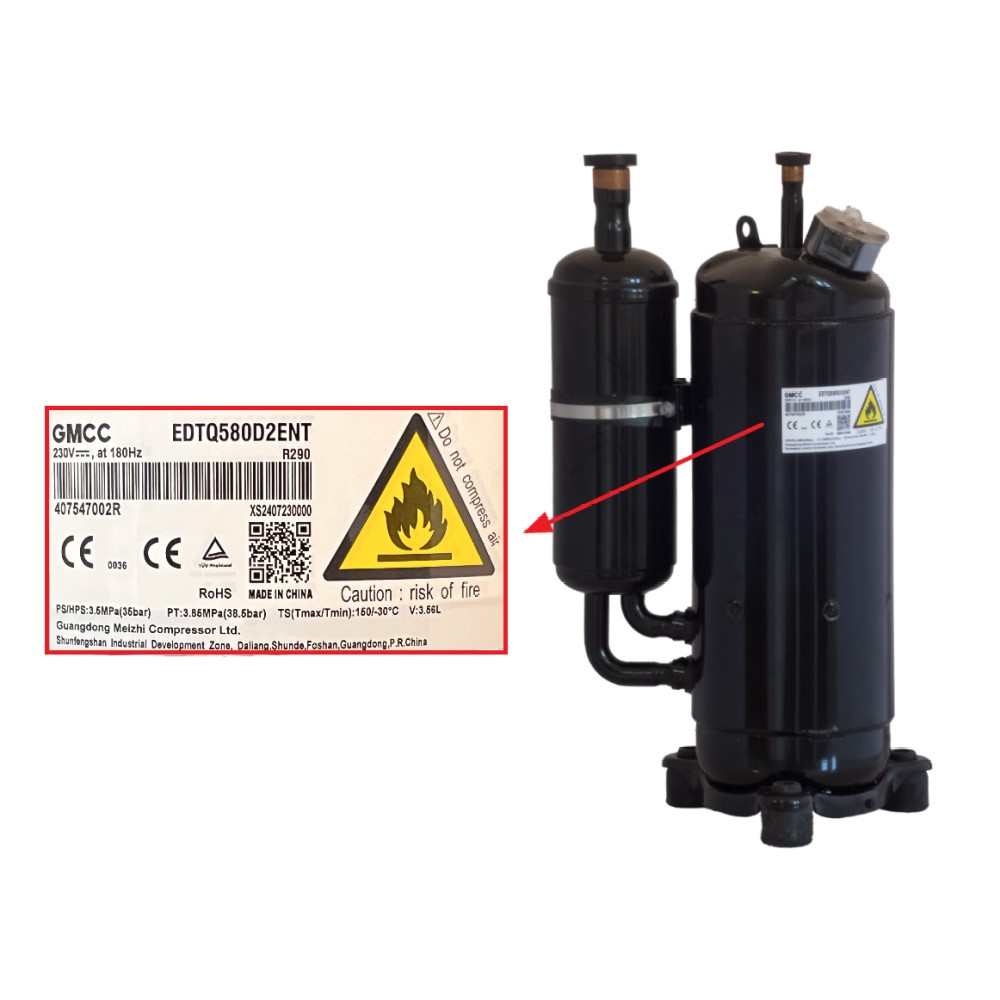

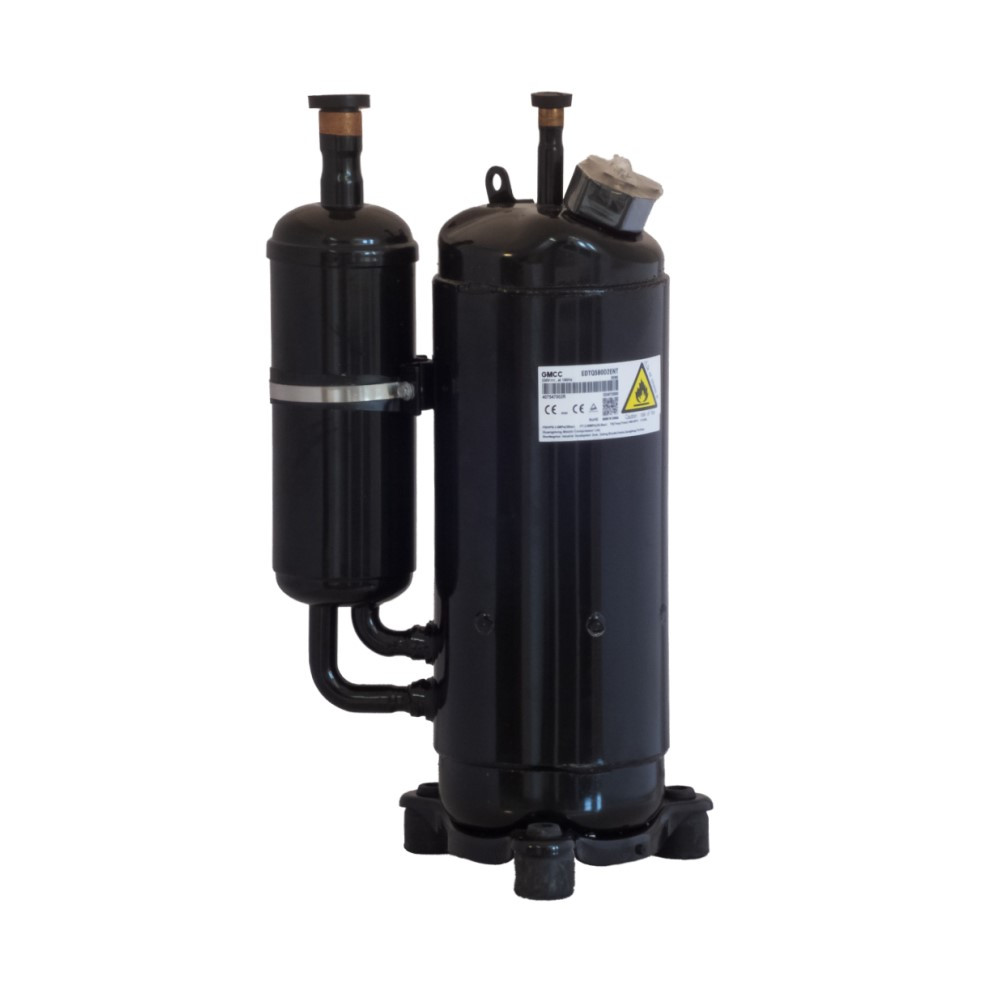

Heat pump 16KW-R290 compressor EDTQ580D2ENT

Name: Heat pump 16KW-R290 compressor EDTQ580D2ENT
SKU: 6362
Price: 721.36 EUR
Availability: InStock

The EDTQ580D2ENT is a high-performing solution suitable for various HEAT PUMP applications. With a robust capacity of 16.608 W and an impressive coefficient of performance of 4,86, it ensures efficient cooling and heating performance. The 58 cm3 displacement, coupled with advanced ROTARY technology, guarantees smooth operation.

Featuring a reliable Internal motor protection system and utilizing XS-601C1 oil, it ensures durability and reliability. The VERTICAL design and compact dimensions of 375 mm height make it easy to integrate into HEAT PUMP systems. It works with R290 refrigerant, with a maximum discharge temperature of 115 ºC.

Learn more

In stock

721.36 € (568 €+153.36 €VAT)

Points earned after purchase: 21.64 €

Details

Capacity	16.608 W
COP	4,86
Displacement	58 cm3
Phase	3
Refrigerant	R290
Speed	12-120 rps
SG	NO
Inverter	YES
EVI	NO
Technology	ROTARY
pressure	HT, L, M
Motor protection type	Internal
Design	VERTICAL
CE	YES
UL	NO
Application	HEAT PUMP
Type of oil	XS-601C1
PED	II
Motor type	DC BRUSHLESS
Power supply	3 Φ, DC INVERTER
Height	375 mm
Sound level	77 dB
Diameter	147 mm
Oil Charge	1.100 ml
Discharge Pressure	1,34 MPa
Suction Pressure	0,41 MPa
Tev	2,7 ºC
Tco	42,3 ºC
Suction Line	22,2 mm
Discharge Line	13 mm
SH	11,1 ºC
SC	8,3 ºC
Capacity Revolutions	90 rps
Maximum discharge temperature	115 ºC
Heating Capacity	20.915,5 W
