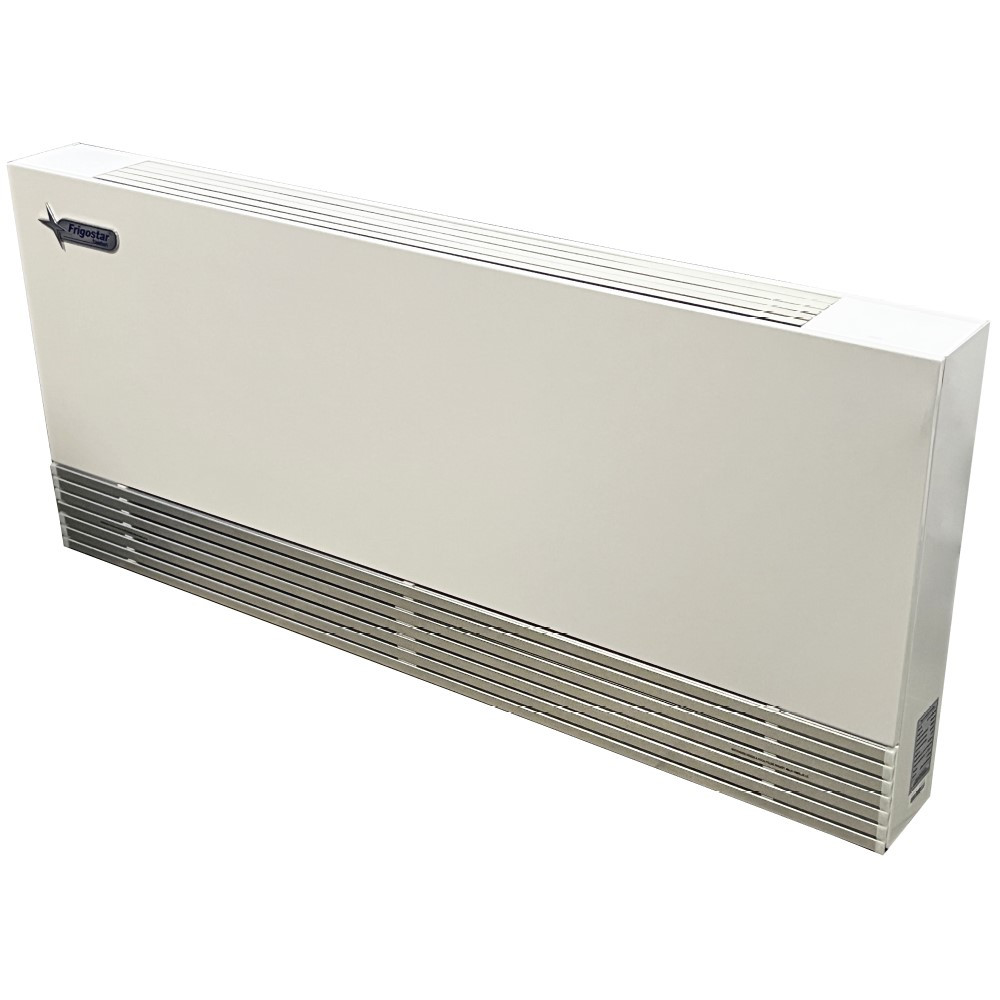

Ultra Thin Fan Coil FCU-3500/5250

Name: Ultra Thin Fan Coil FCU-3500/5250
SKU: 6065
Price: 804.87 EUR
Availability: InStock

The Frigostar Comfort air-to-water heat pump translates modern technology into everyday life. The pump extracts heat from the environment, which it transfers to the water of the heating system. It not only meets heating needs, it also produces domestic hot water and, in addition to heating, it can also be used for cooling in the summer heat.

Rated Cooling Capacity (W): 3500

Rated Heating Capacity (W): 5250

To pre-order, please contact us at one of

Details

In stock

Fan Coil type

FCU-1000/1500

FCU-1900/2850

FCU-2800/4200

FCU-3500/5250

FCU-4000/6000

804.87 € (633.75 €+171.11 €VAT)

Bonus point : 24.15 €

Details

Model:FCU-3500/52500

Rated Cooling Capacity¹ (W / BTU/h): 3500 / 12000

Rated Heating Capacity² (W / BTU/h): 5250 / 17900

Maximum Air Flow (m³/óra): 500

Minimal Air Flow (m³/óra): 220

Noise (dB(A)): 40

Rated Input Power (W): 15

Water Volume Flow (m³/óra): 0,6

Pressure Drop (kPa): 20

Inlet and Outlet Connection of Water: R 1/2"

Design: Two pipes

Maximum Working Pressure (bar): 16

Diameter of Condensate Pipe Connection (mm):21

Dimensions (L/W/H) (mm): 1300/130/581

Net Weight (kg): 24

Packaging Dimensions (L/W/H) (mm): 1350/180/630

Gross Weight (kg): 28

¹Measurement Conditions of Cooling Performance:

Inlet dry air (°C): 27
Inlet Water Temperature (°C): 7
Outlet Water Temperature (°C): 12

²Measurement Conditions of Heating Performance:

Inlet dry air (°C): 20
Inlet Water Temperature (°C): 60

Info

Article No.:

6065

Weight:

28 kg/db
