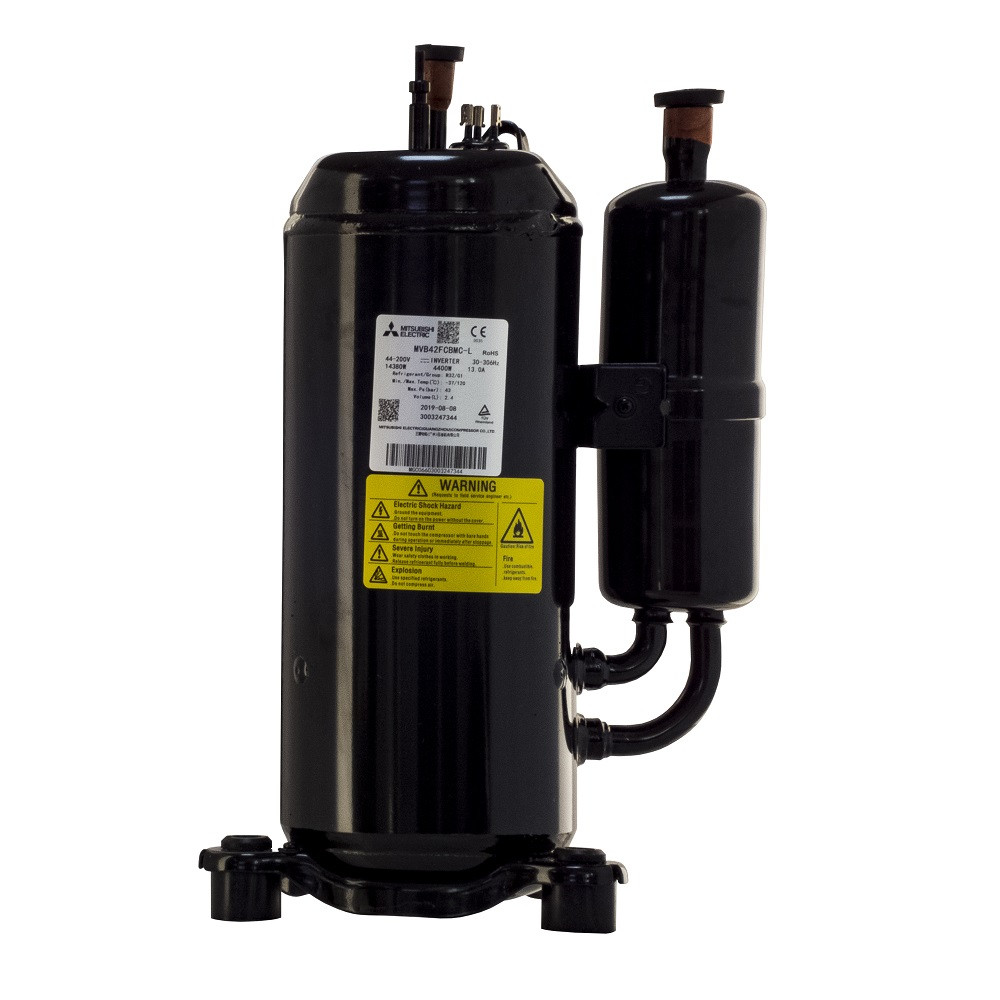

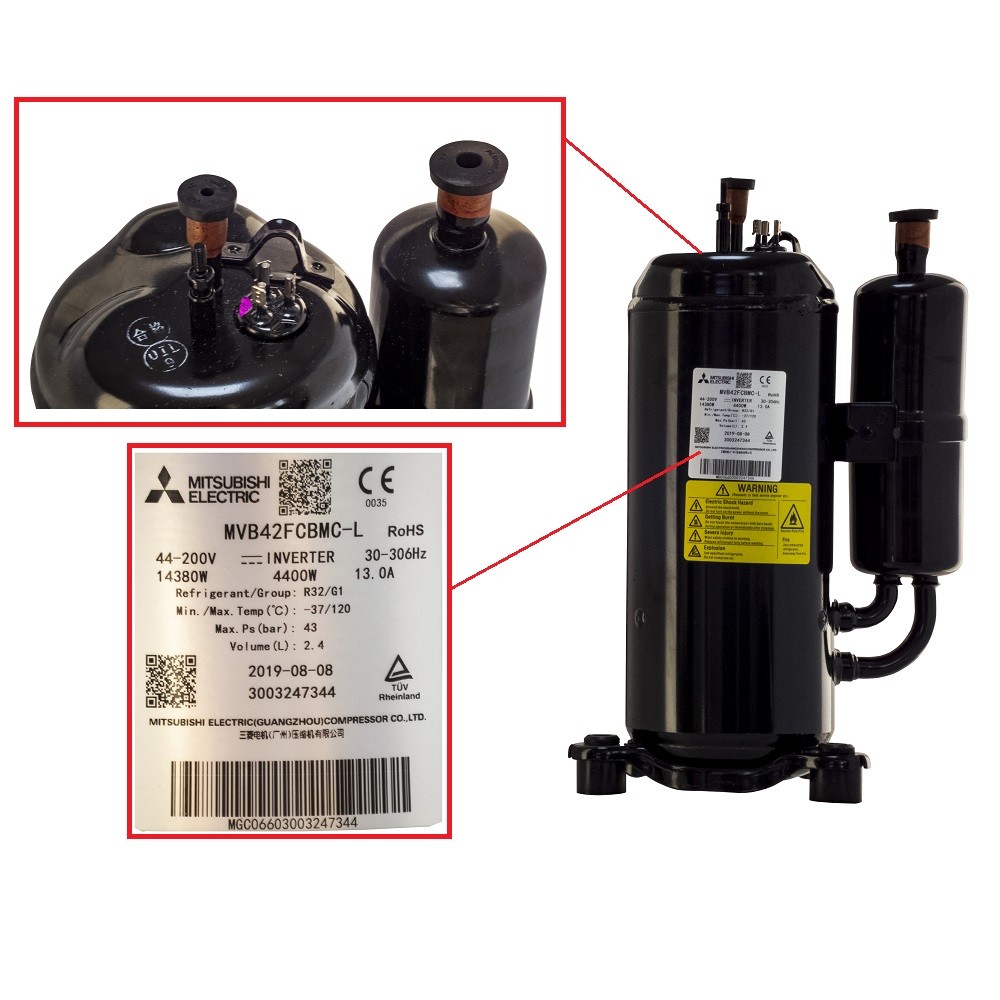

Compressor MVB42FCBMC-L R32 Mitsubishi

Compressor data:

• Design: Rolling piston type rotary
• Number of cylinders: 2
• Displacement (cm³): 42.1

Motor data:

• Motor type: BLDCM
• Nominal output (W): 3 000
• Pole number (P): 6
• Nominal revolution (rpm): 3 600
• Insulation class: E
• Motor resistance (Ω, 20ºC): 0.49 ±5%

Refrigerant: R32

Oil:

• Brand: FW68S or equivalent
• Charge amount (cm³): 1250 ±15ml

Mass (includ. oil) (kg): 19.2 ±5%

Inverter input power source:

• Rated voltage (V): 200-220/380-415
• Rated frequency (Hz): 50/60
• Phase: 1 phase / 3 phase

Running revolution (rps): 10-102

Performance (By Mitsubishi Driver, After 24 Hours Run-In):

• Refrigerating capacity (W): 14 380 ±5%
• Motor input (W): 4 400 ±5%
• Current (A): 13,0
• Coeffcient of Performance (COP) (W/W): 3.27

Conditions (ARI):

• Evaporating temperature (ºC): 7.2
• Condensing temperature (ºC): 54.4
• Return gas temperature (ºC): 18.3
• Ambient temperature (ºC): 35.0
• Liquid temperature (ºC): 46.1
• Revolution (rps): 60
