Housing: self extinguishing ABS
Case: (Width x Height x Depth) frontal 210x230x87 mm

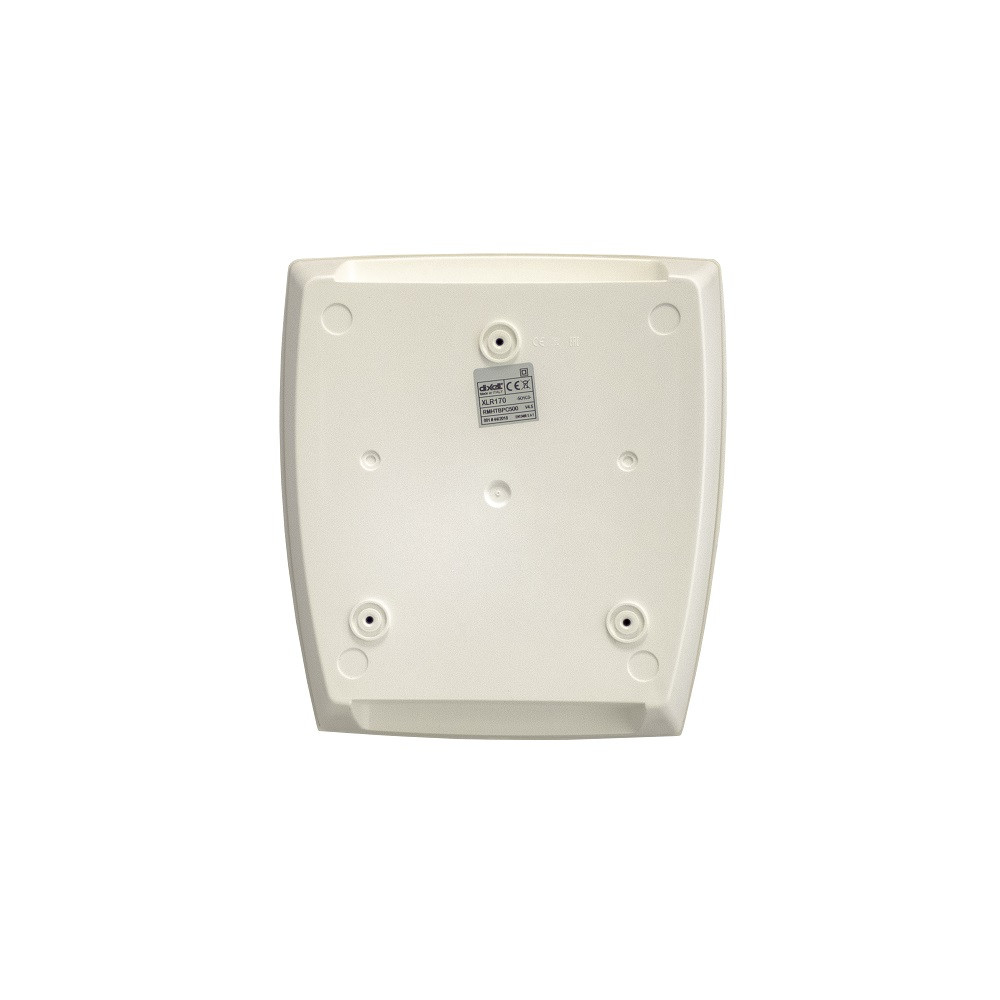

Mpunting: See paragraph 9.
Protection: IP65

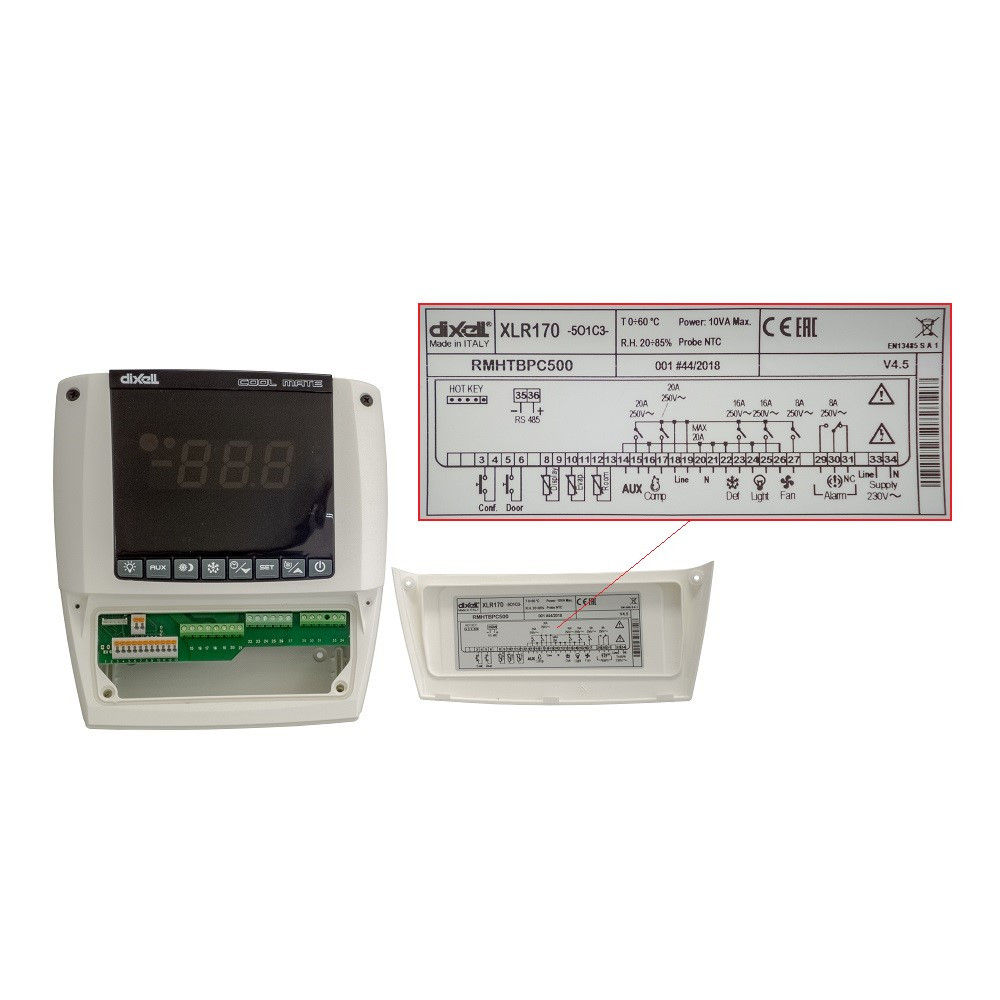

Connections: Screw terminal blocks
Power supply: 230VAC, 50/60Hz ± 10% or 110VAC 50/6Hz ± 10%

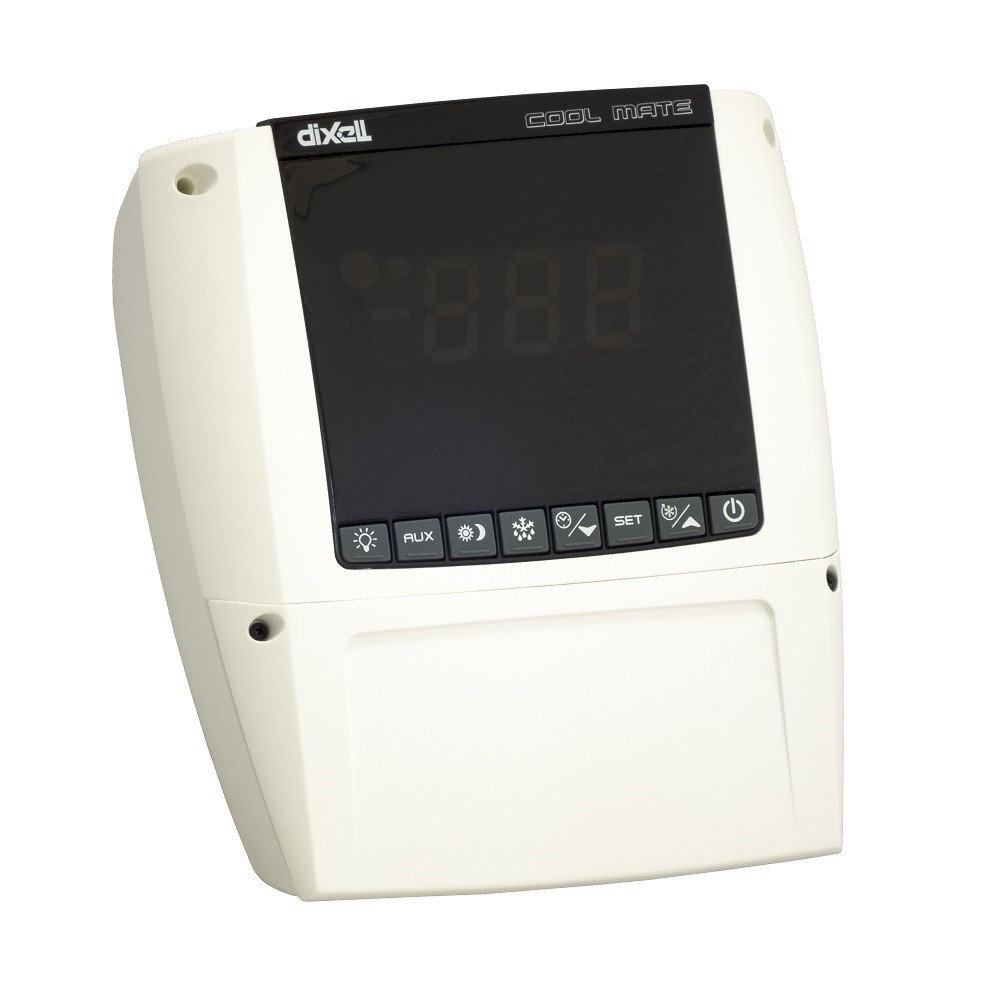

Display: 3 digit, red LED, 30,5 mm high

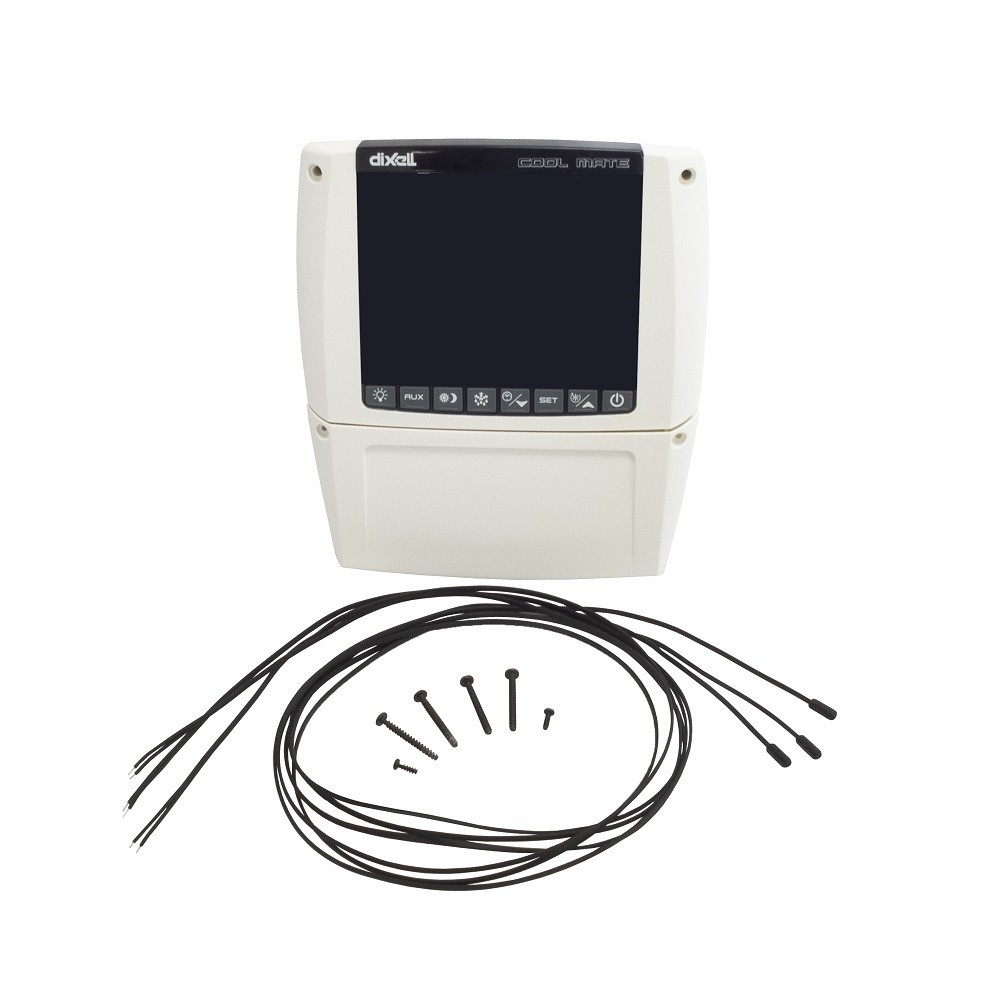

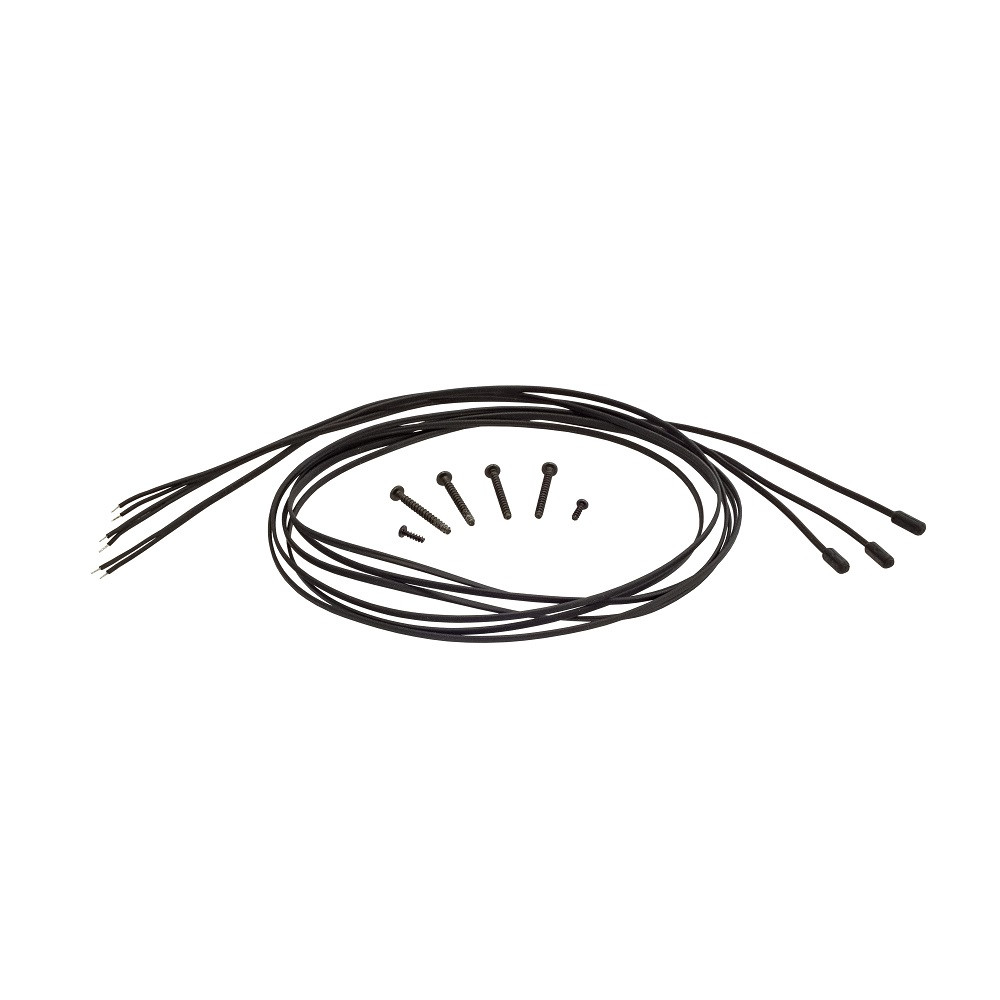

inputs: 3 NTC or 3 PTC probe
Digital inputs: Door switch and configurable, free voltage. Max distance: 10m
Relé outputs:
- Compressor: Relay SPST 20(8) A, 250VAC
- Light: Relay SPST 16(3) A, 250VAC
- Fans:Relay SPST 8(3) A, 250VAC
- Defrost:Relay SPDT 16(3) A, 250VAC
- Alarm:Relay SPDT 8(3) A, 250VAC
- Auxiliray:Relay SPST 20(8) A, 250VAC
Other outputs:
- Alarm buzzer (standard)
- Direct RS485 (optional)
Serial output: TTL standard
Communication protocol: ModBUS-RTU
Data storing: on the non-volatile memory (EEPROM)
Internal clock back-up: 24 óra
Kind of action: 1B
Pollution grade: Normal
Software class: A
Operating temperature: 0÷60°C
Storage temperature: -25÷60°C
Relative humidity: 20÷85% (no condensing)
Measuring and regulation range: NTC probe: -40÷110°C (-58÷230°F)
Resoltuion: 0,1°C or 1°C or 1°F (selectable)
Accuracy (ambient temperature: 25°C): ± 0,5°C ± 1 digit
