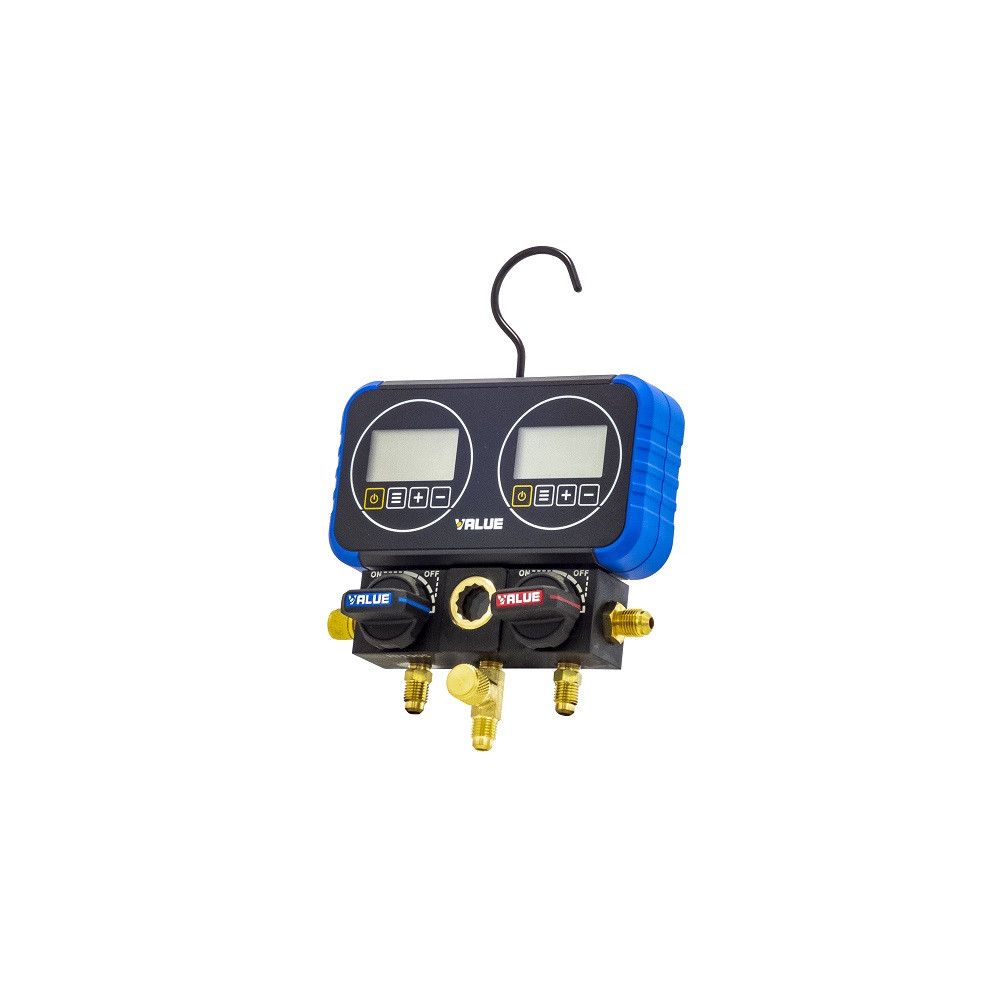

Manfold Gauge VRM2-0101i

Name: Manfold Gauge VRM2-0101i
SKU: 6005
Price: 303.1 EUR
Availability: InStock

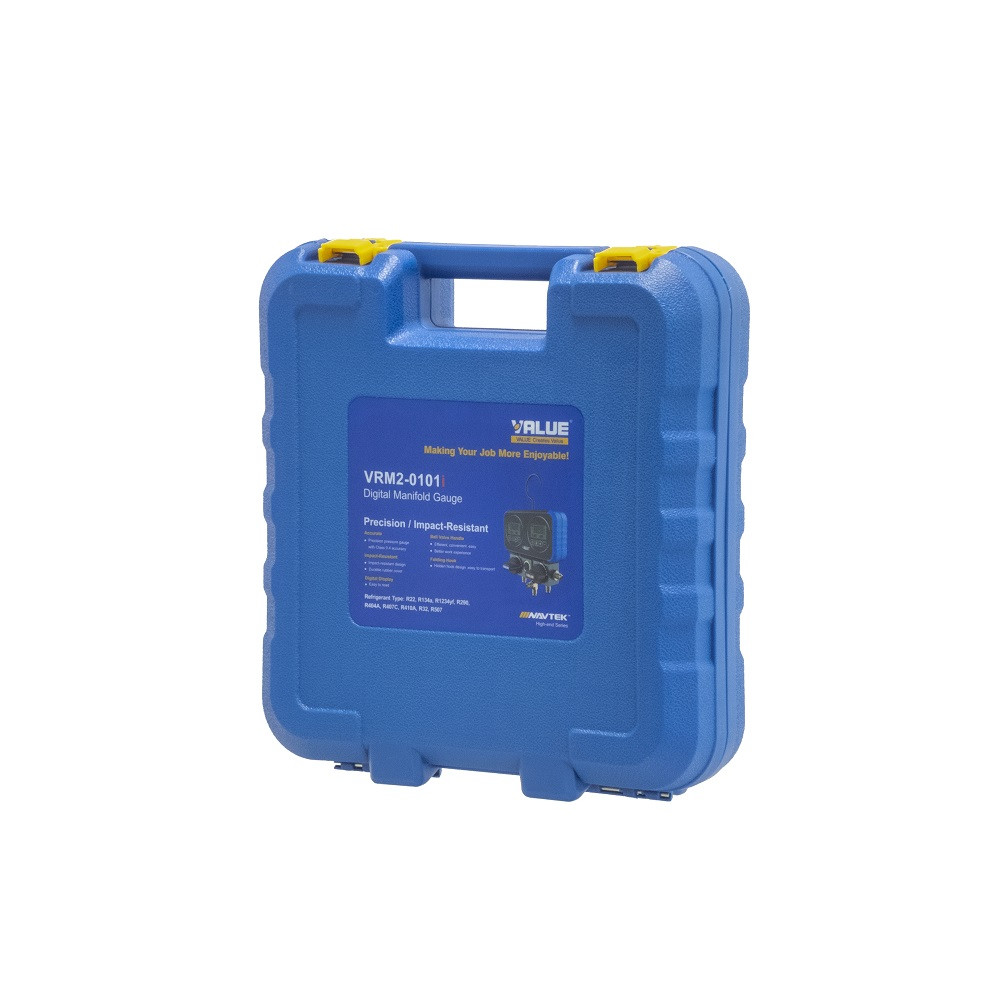

Impact-resistant faucet with digital display in a plastic bag.

For charging R22, R32, R290, R410A, 1234yf, R134a, R404A, R407C, R507A refrigerants.

2 pin design.

Battery status display.

It is only suitable for vacuum measurement when using the inHg measurement unit.

Due to display capabilities, R1234yf refrigerant appears as R922B in the menu.

Learn more

In stock

303.1 € (238.66 €+64.44 €VAT)

Points earned after purchase: 9.09 €

Details

Units: psi, Bar, KPa, MPa, kgf/cm2.

Temperature display: C° / F°.

Vacuum display: inHg

Pressure scale (relative pressure): 0-50bar; 0-725psi; 0-5000kPa; 0-5Mpa; 0-51 kgf/cm²

Vacuum measurement range: -29.9~0 inHg

Maximum overpressure: 75bar; 750 kPa; 7.5Mpa; 1087 psi; 76.5kgf/cm²

Resolution: 0.1psi / 0.1bar / 1kPa / 0.001Mpa / 0.1kgf/cm²

Vacuum resolution: 0.1 inHg
Ambient temperature -10~50C°.
Power supply: 1 9V battery per instrument. Battery life approx. 20 operating hours.
Battery not included.

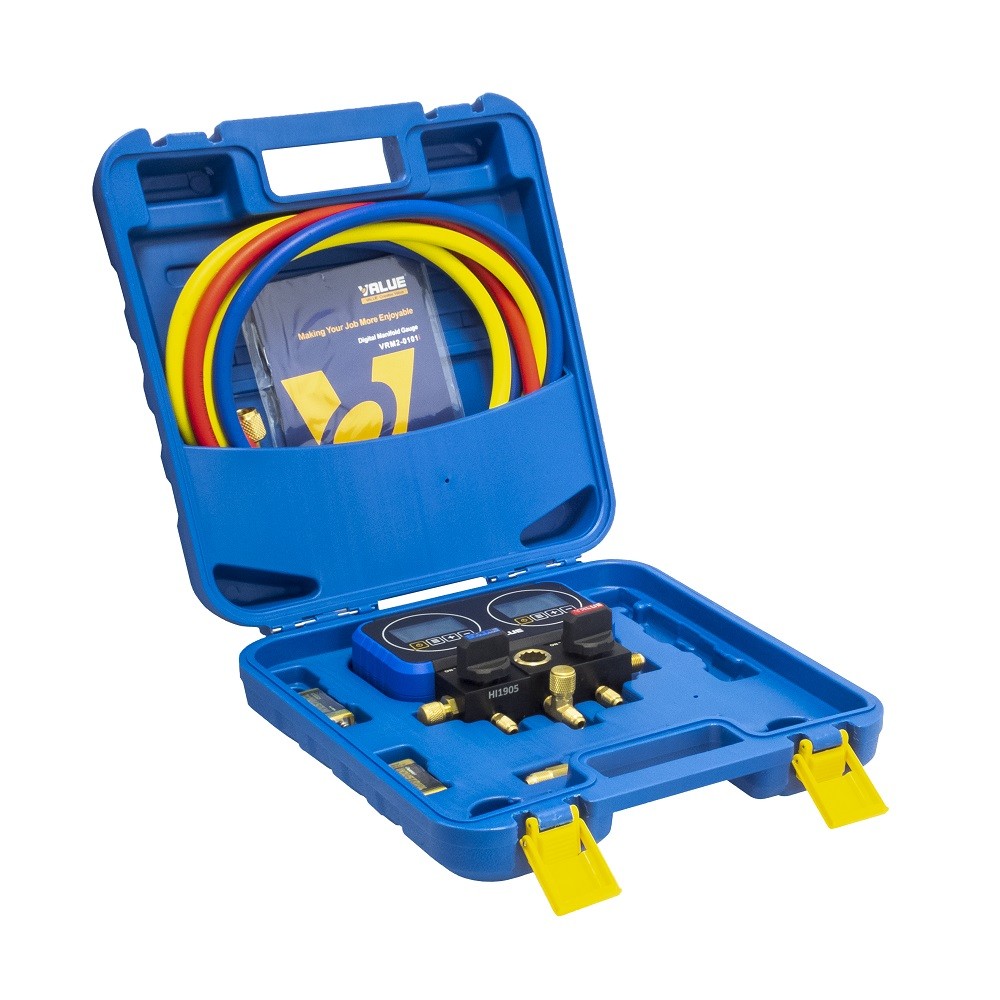

Contents of the bag:

-1 digital manometer VRM1-0101 (shock resistant)

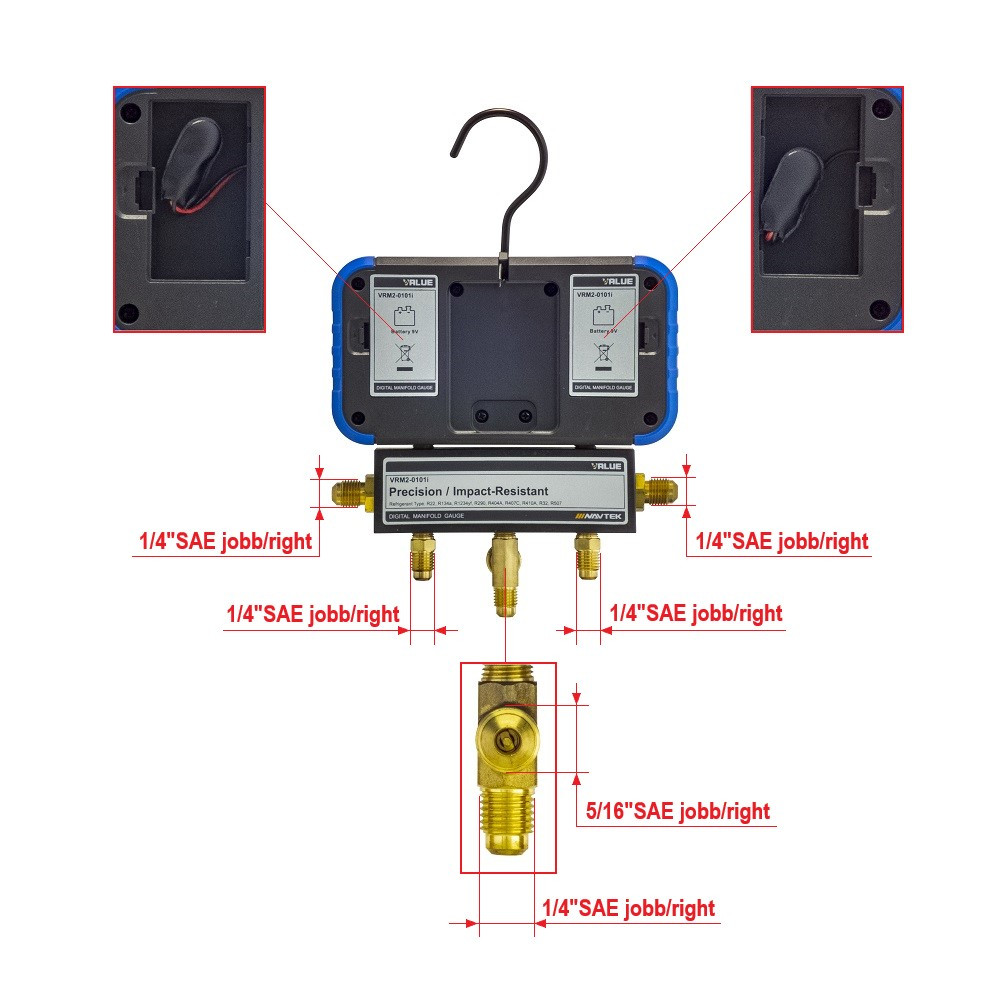

-3 150cm hoses
Yellow: 1/4" SAE - with 1/4" SAE connectors.
Red: with 5/16" SAE - 1/4" SAE connectors.
Blue: with 5/16" SAE - 1/4" SAE connectors.

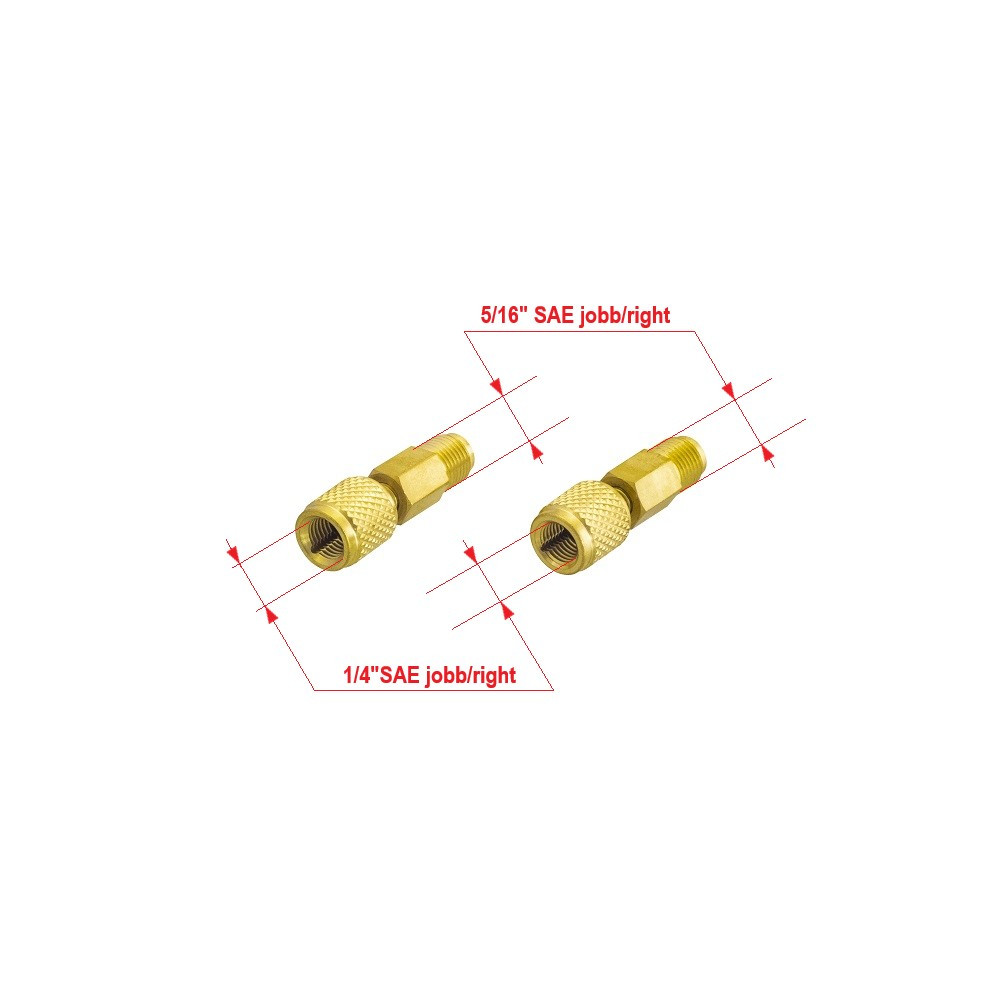

-2 adapters (Dutch 1/4" + 5/16" external thread)

Not suitable for measuring ammonia (R717)!
