Recharge Hose for Vehicles 1234YF

Name: Recharge Hose for Vehicles 1234YF
SKU: 5934
Price: 22.51 EUR
Availability: InStock

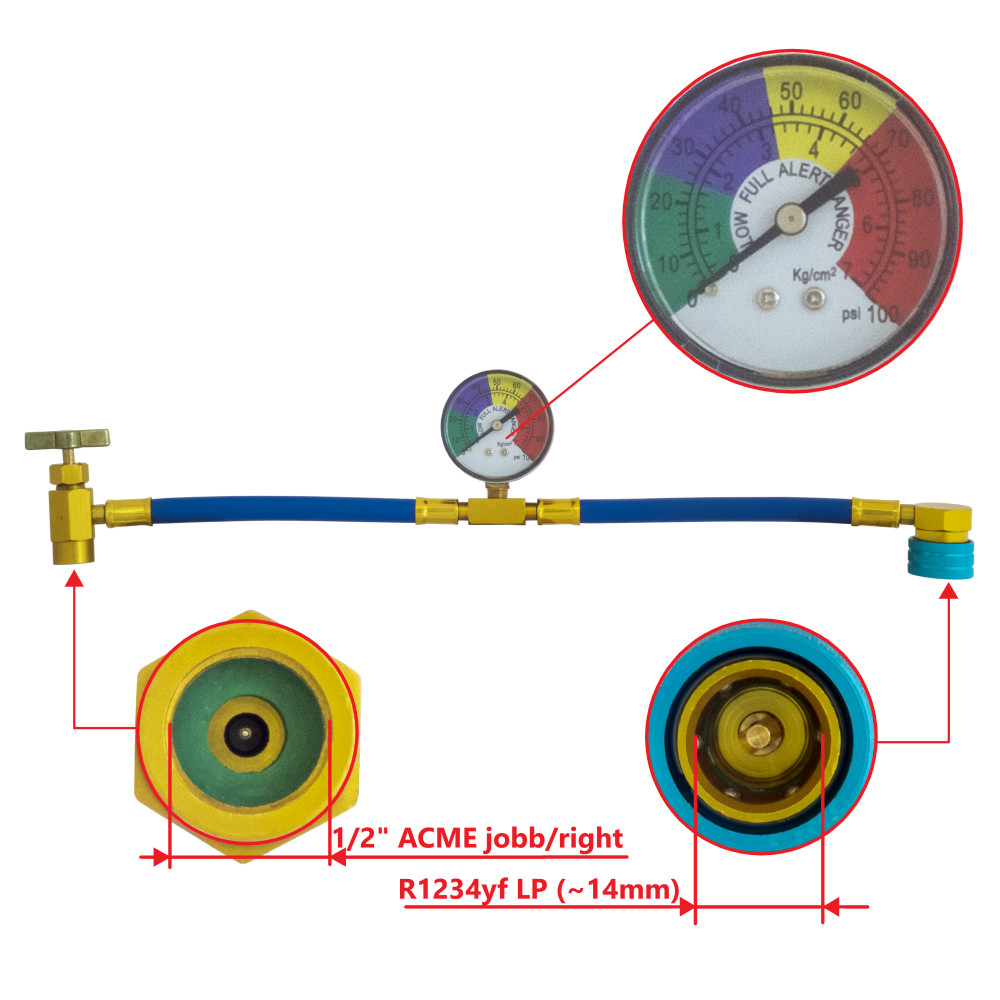

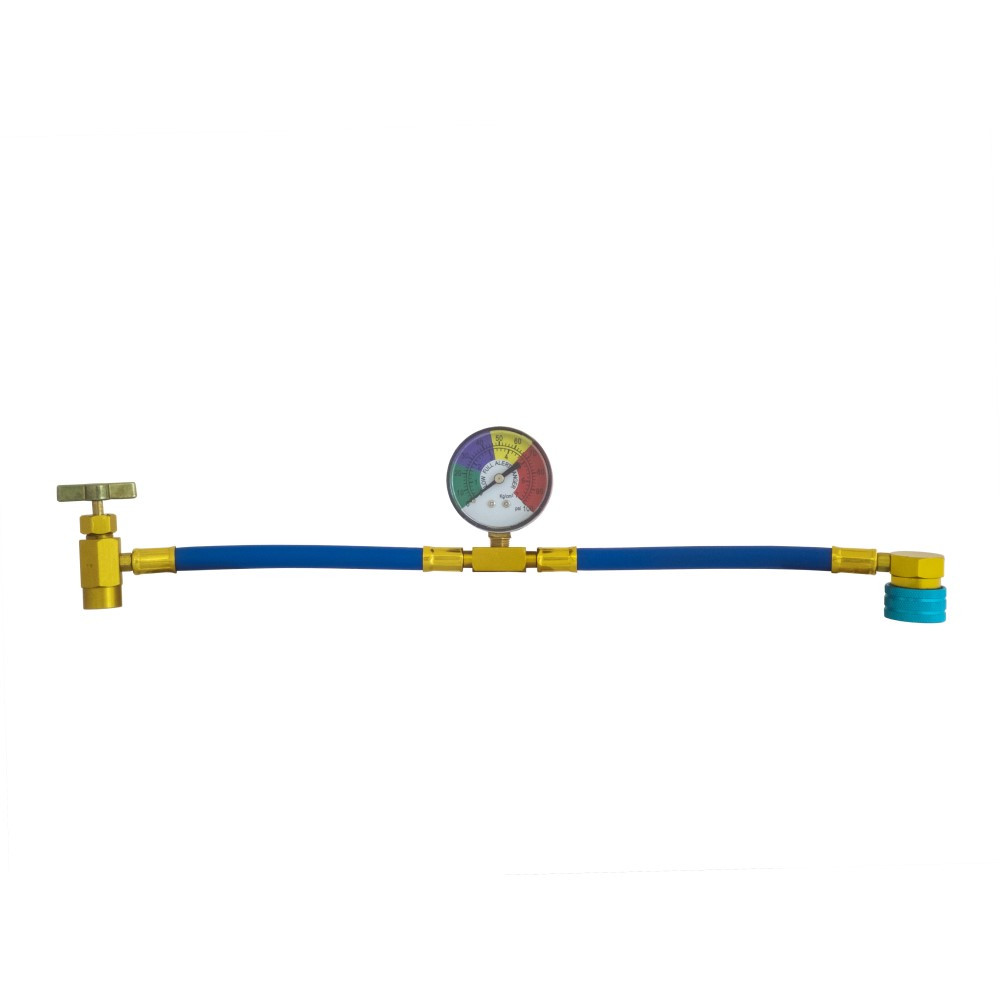

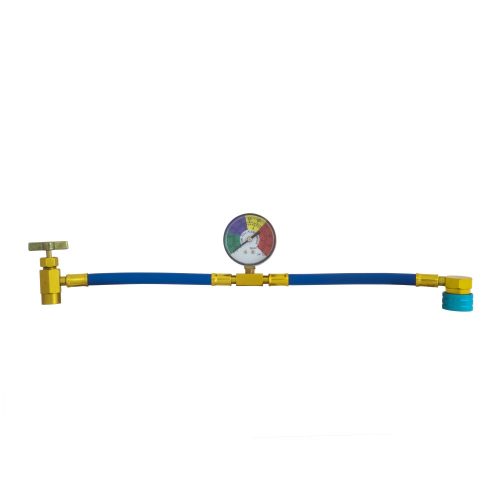

Recharge hose with manometer suitable for the low side (LP) connection of R1234yf refrigerated car air conditioning systems and 1/2 "ACME right-handed needle valve recess.

Quick connector size: R1234YF LP (~ 14 mm)

Needle valve impress size: 1/2 "ACME right thread

The thread of the needle valve of recharge hose is suitable for the bottle in the Miracle Package 2.0!

The needle valve thread is suitable for the following products:

Only qualified personnel should service the vehicle's air conditioning system!

Details

In stock

22.51 € (17.73 €+4.79 €VAT)

Bonus point : 0.68 €

Details

A converter valve is required for use!

Safety warning!

Do not remove the converter valve from the bottle after use. Removing the valve will release the refrigerant into the environment. Leaking refrigerant can cause personal injury.

USER MANUAL

1. Remove the cap from the bottle.

2. Screw the conversion pin onto the bottle.

3. Connect to the piping system.

4. Fill until the desired evaporation pressure (based on factory refrigerant) is reached.

5. Repeat the procedure to replace the bottle.

FONTOS! The bottles are fitted with a disposable shut-off valve at the factory. After the first use, the converter valve can be used to close the bottle.

QUANTITY OF REFRIGERANT REQUIRED
In all cases, the dosing must be carried out until the evaporating pressure of the original refrigerant is reached. This means a refrigerant equivalent to approximately 33% of the factory charge.

Info

Article No.:

5934

Weight:

160 g/db
