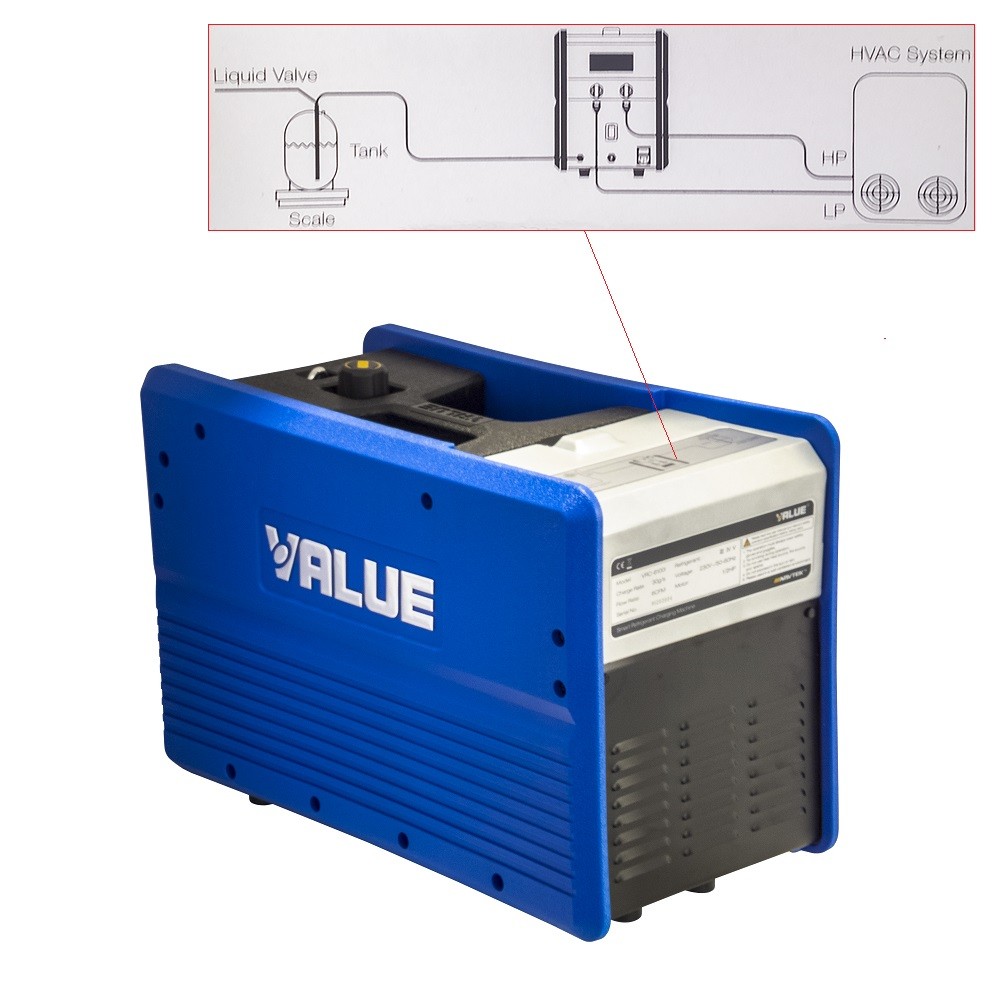

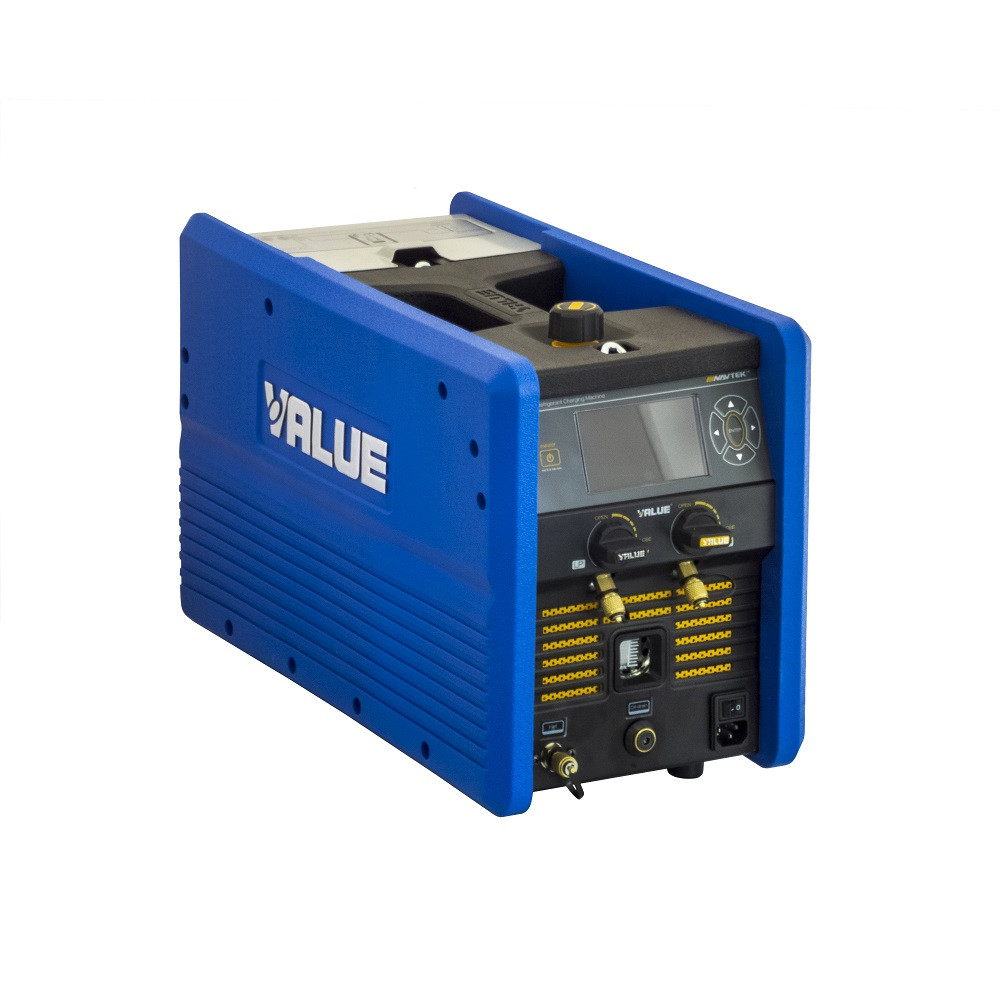

Smart Refrigerant Charging Machine VRC-6100D

VALUE NAVTEK automatic vacuum filling device. Excellent for charging industrial and commercial refrigeration and air conditioning systems. It is capable of automatically performing all work processes related to charging.

  • Automatic operation
  • Built-in leak detection function

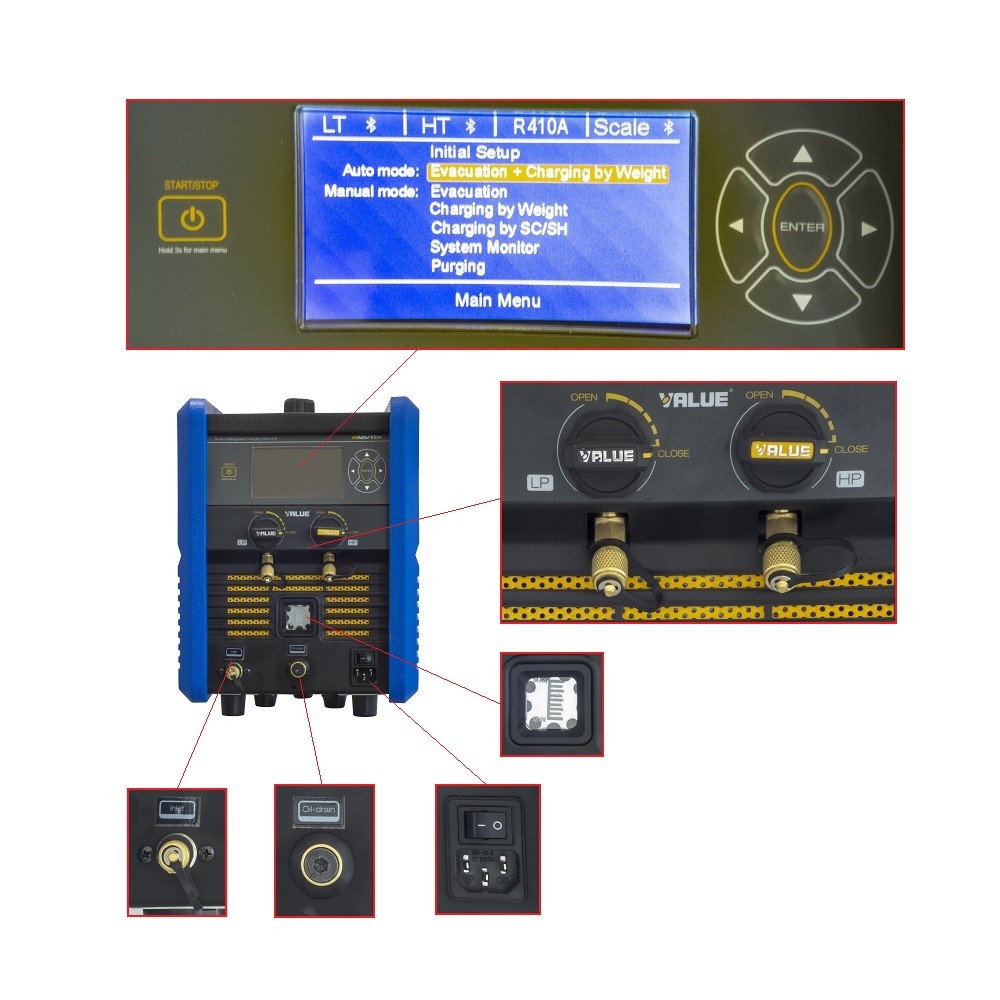

  • Real-time status display and alerts
  • Precision charging (accuracy: 0.05%)
  • High efficiency (high final vacuum)
  • Bluetooth communication between the charging machine and the scale and temperature measuring probes

The wireless scale, charging tubes and power cable belonging to the device can be placed in the vacuum filling device, so all the necessary accessories can be easily carried using the shoulder strap of the device.

Out of stock
1 016.04 (800.03+216.01VAT)
Bonus point : 30.48 €
Details

The set contains the following:

  • 1 piece of vacuum filling device
  • 1 piece of digital, wireless scale with a measurement limit of 100 kg (can be coordinated with the vacuum filling device)

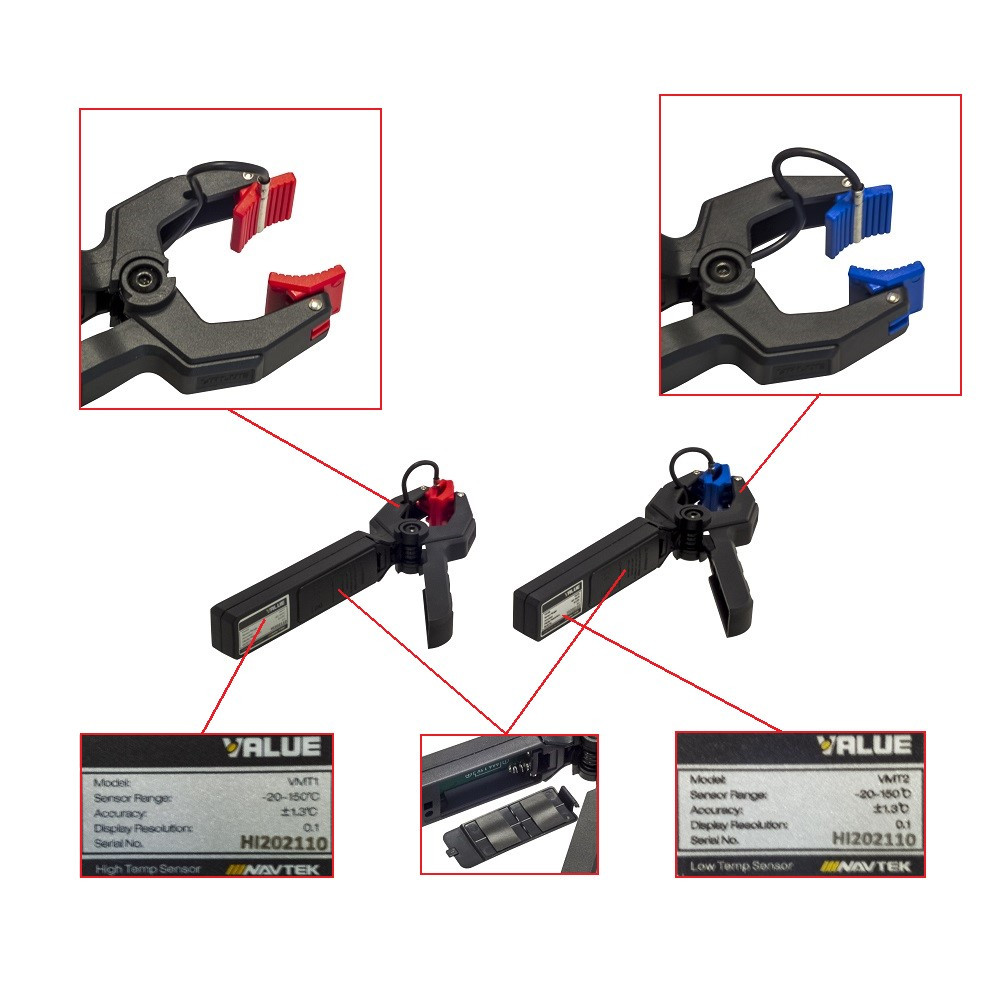

  • 1 piece of high-side, wireless temperature probe (VMT-1) (the probe can be coordinated with the vacuum filling device)
  • 1 piece of low-side, wireless temperature probe (VMT-2) (the probe can be coordinated with the vacuum filling device)

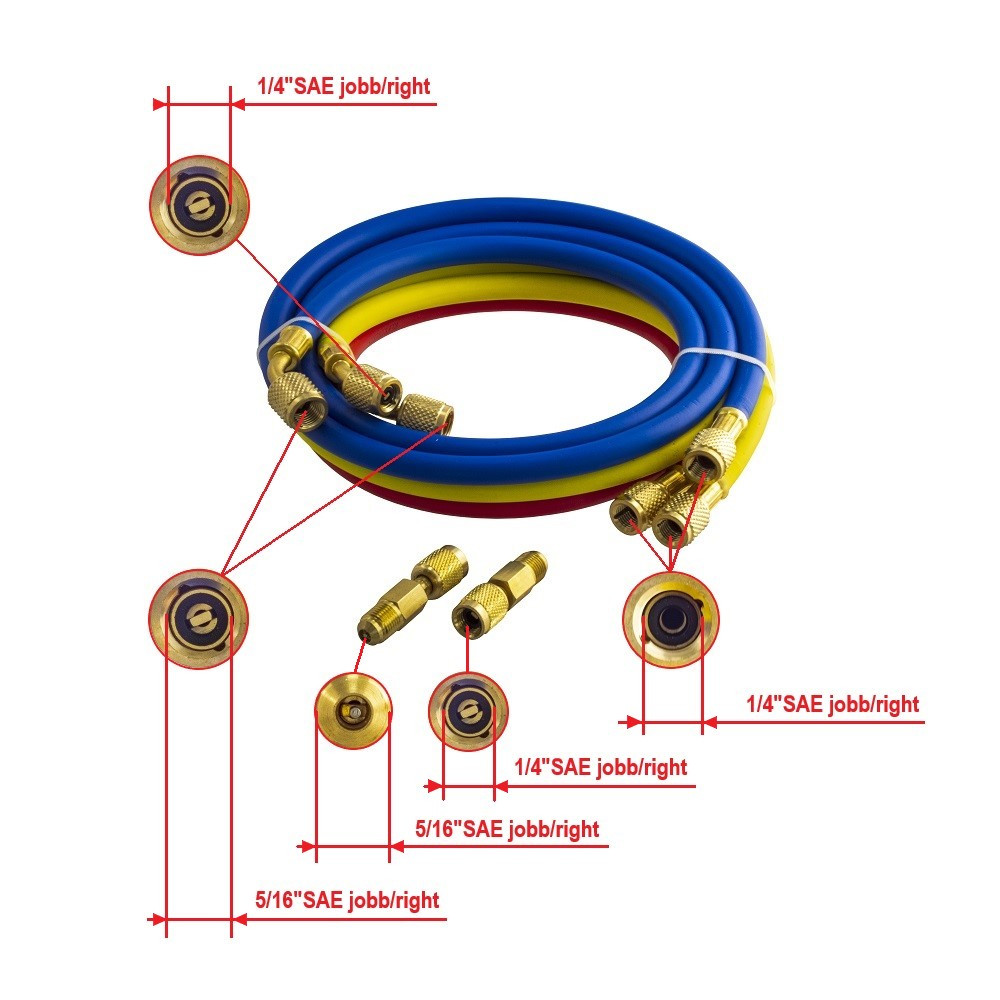

  • 3 pieces of 160 cm filler pipe (1 piece of blue 1/4"SAE 180°-5/16"SAE 60°, 1 piece of red 1/4"SAE 180°-5/16"SAE 60° and 1 piece of yellow 1/4"SAE 180°-1/4"SAE 60°)
  • 2 pieces of conversion connectors (5/16"SAE external - 1/4"SAE internal)
  • 4 pieces of AA batteries (to operate the wireless scale)
  • 10 pieces of AAA batteries (4 batteries for operating the scale operator and 3-3 batteries for operating the temperature probes)
  • 1 bottle (400 ml) of vacuum pump oil
  • 1 piece of shoulder strap
  • 1 piece of power cable



Technical data:
  • Refrigerants: R410A, R22, R32, R134a, R218, R404A, R407C, R407D, R1234yf, R454B, R11, R12, R13, R23, R113, R114, R123, R124, R401A, R401B, R402B, R406A, R407A, R408A, R409A, R413A, R414B, R416A, R417A, R420A, R422A, R422B, R422D, R424A, R426A, R427A, R428A, R508B, R513A, R500, R509A
  • Power Supply: 230V~/50-60Hz
  • Current: 2A
  • Evacuation rate: 6 CFM (170l/min)
  • Motor power: 1/3 HP
  • Charging Rate: 30g/s
  • Thread connections: 1/4"SAE
  • Operating temperature: -1°C~40°C
  • Dimensions: 500X254X344mm
  • Net weight: 18 kg + packaging
Info
Flow Rate:
> 8 m3/h
Article No.:
5840
Weight:
24 kg/db
