Manometer description:

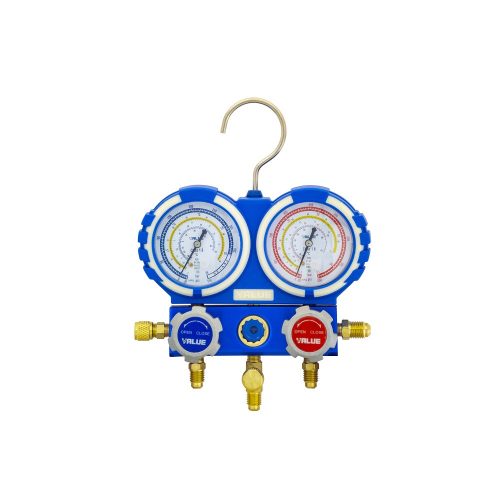

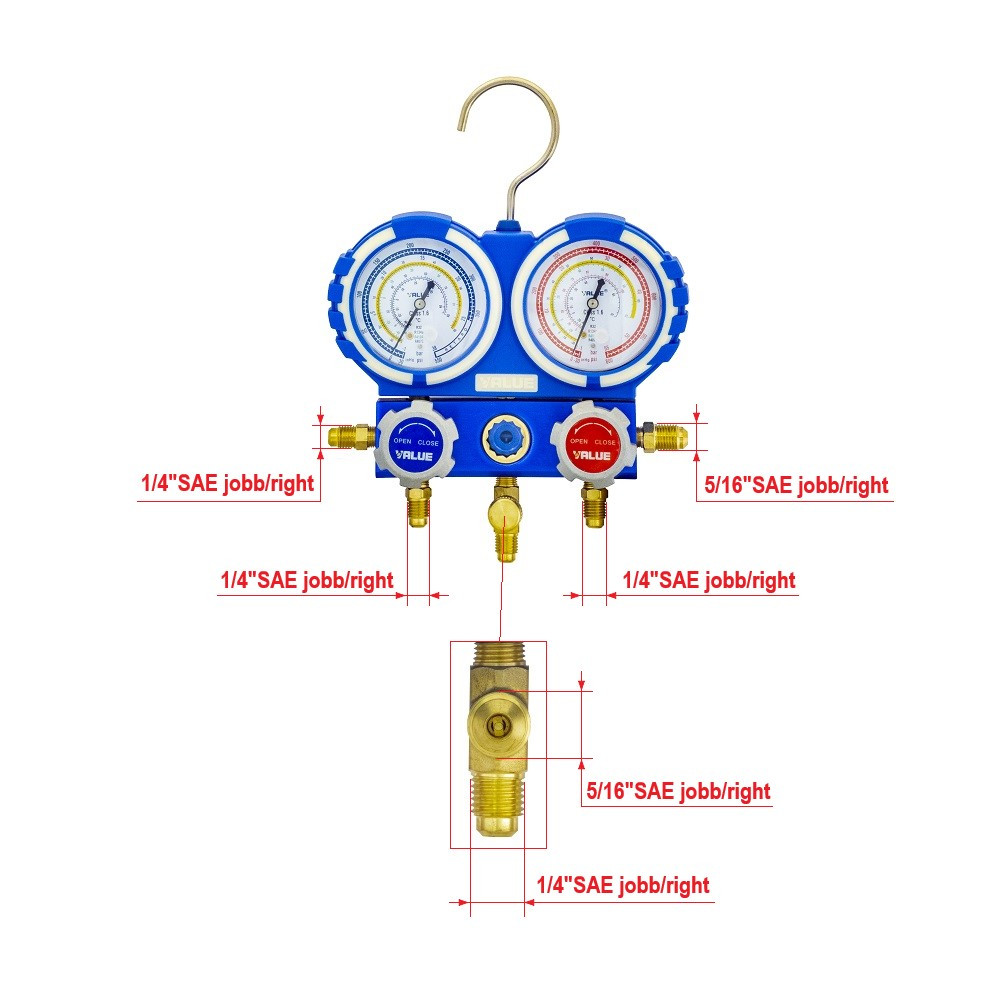

The VMG-2-R32-B-03 faucet has an anodized aluminum faucet body, five connection options (4x1/4" SAE, 1x5/16" SAE), viewing glass, and a low and high pressure faucet.

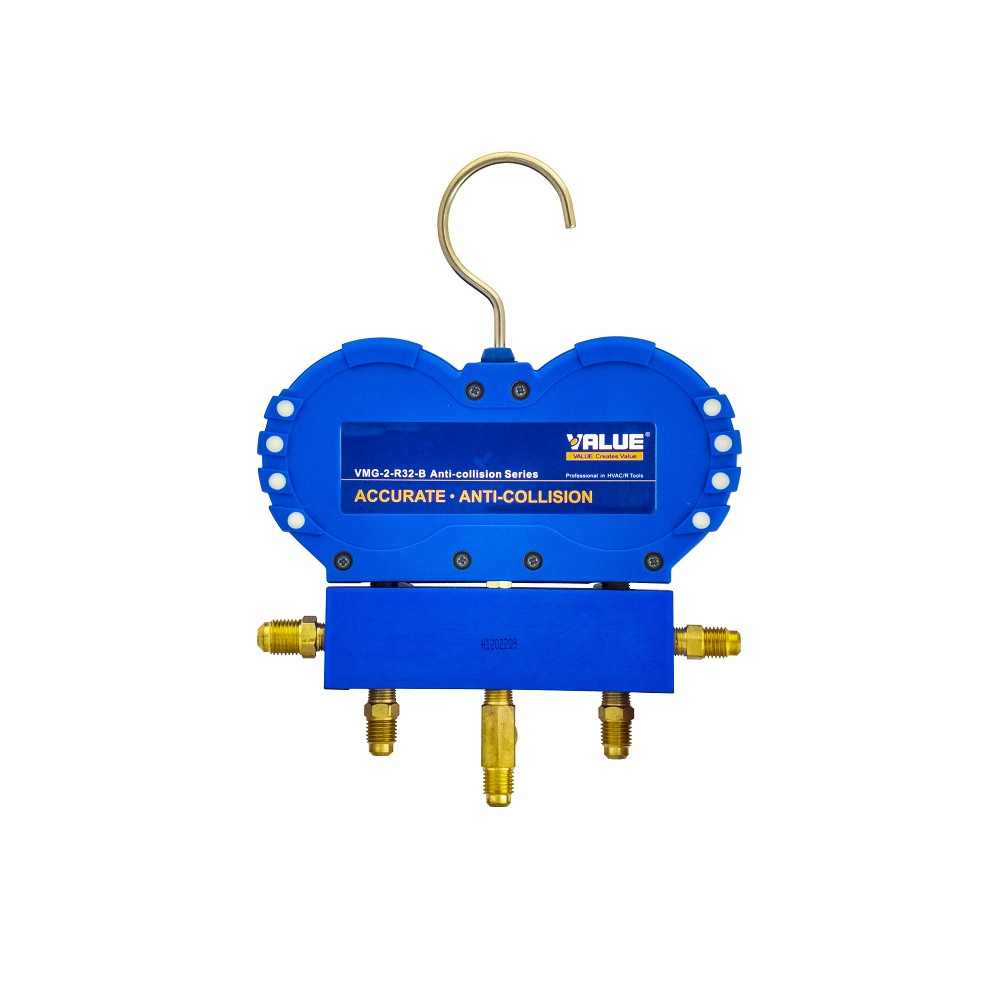

The manometer housing is rubberized and resistant to small impacts.
Its hook makes work easier.
The low pressure gauge has a diameter of 68mm and a measuring range of -30~500psi.
The diameter of the high-pressure gauge is 68mm, its measuring range is -30~800psi.
The connectors of the filling pipes must be attached manually to the faucet and to the cooling system.
Do not use pliers, in case of overtightening, the Teflon seal may deform, causing leakage.
The taps on the faucet open to the left (counter-clockwise) and close to the right (clockwise).
Do not overload the manometers!
In the event of an overload, its internal structure is damaged, which is not visible from the outside, but affects the work with incorrect measured data.
Recommended refrigerants: R32; R134a; R407C; R410A
