Manometer description:

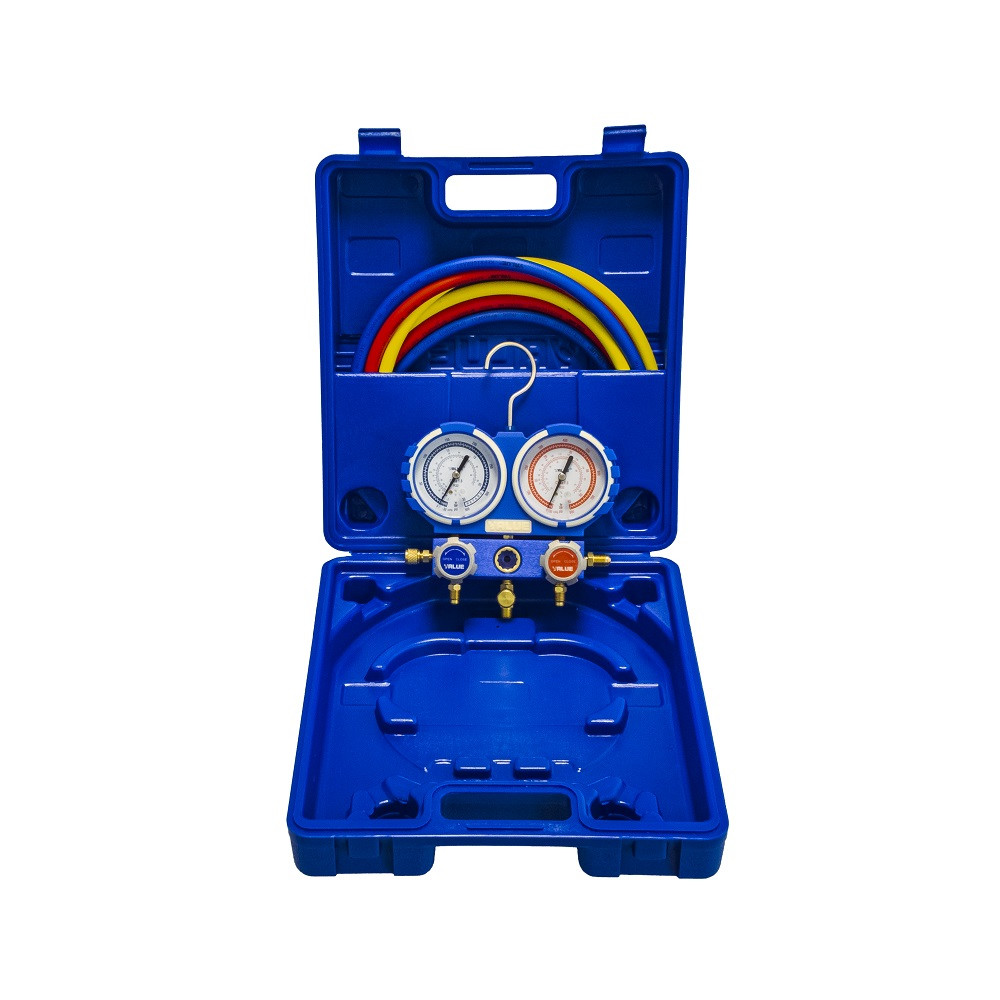

The VMG-2-R32 manometer has an anodized aluminum tap body, five connection options (4x1/4" SAE, 1x5/16" SAE), sight glass, low and high pressure tap.
The manometer housing is rubberized and resistant to small impacts.

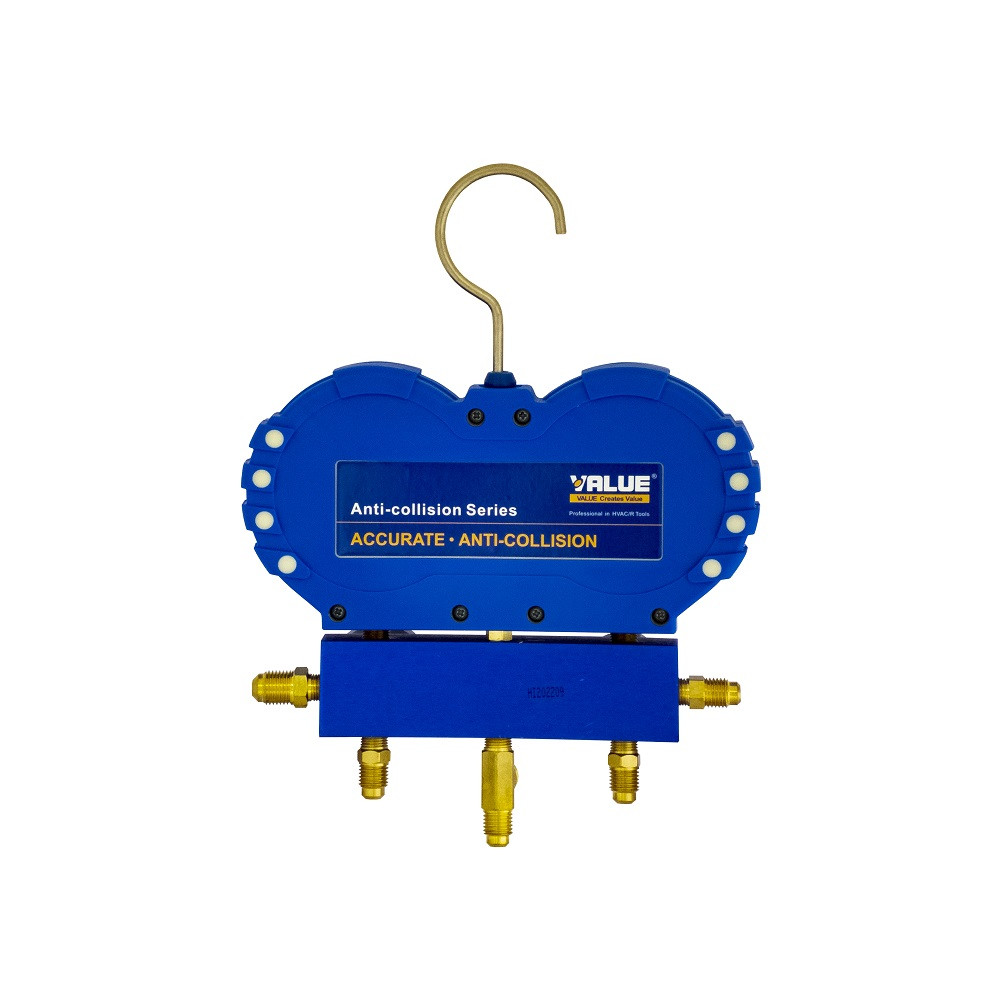

Its hook makes work easier.
The low pressure gauge has a diameter of 80mm and a measuring range of -30~500psi. The high-pressure gauge has a diameter of 80mm and a measuring range of -30~800psi.

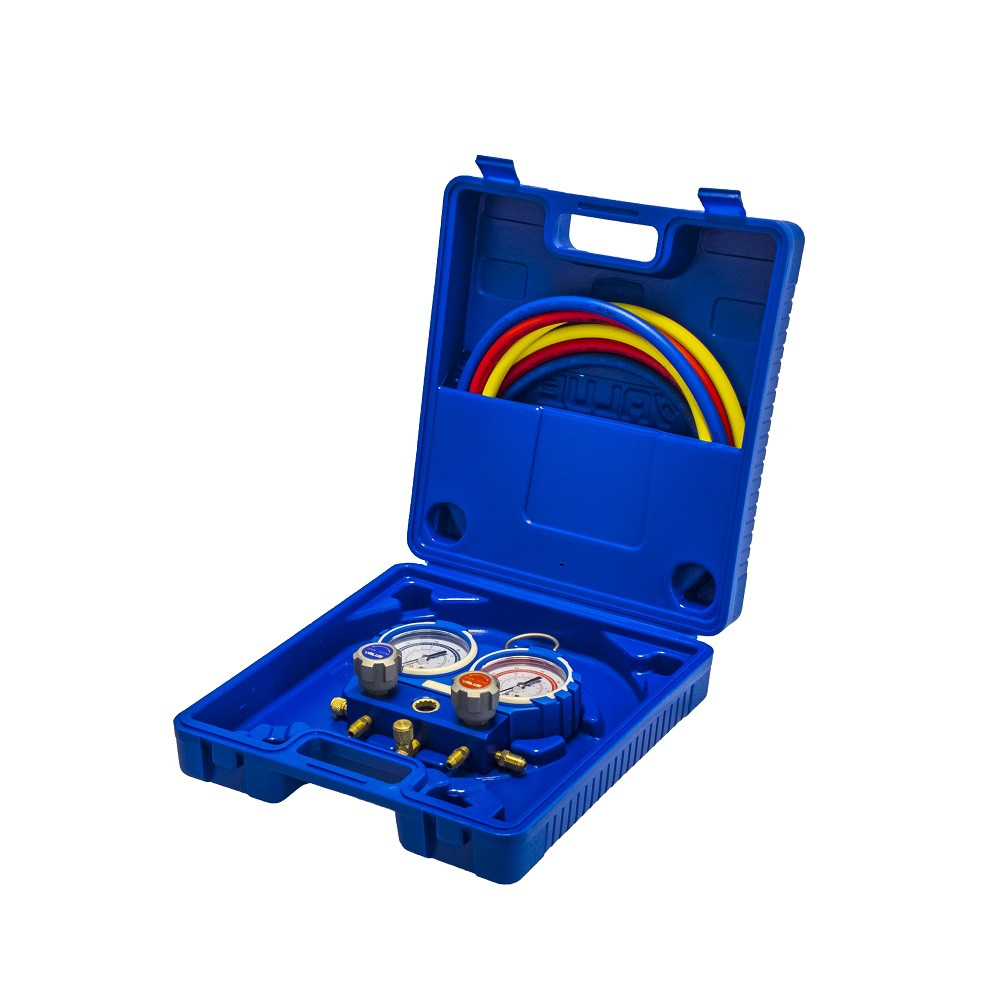

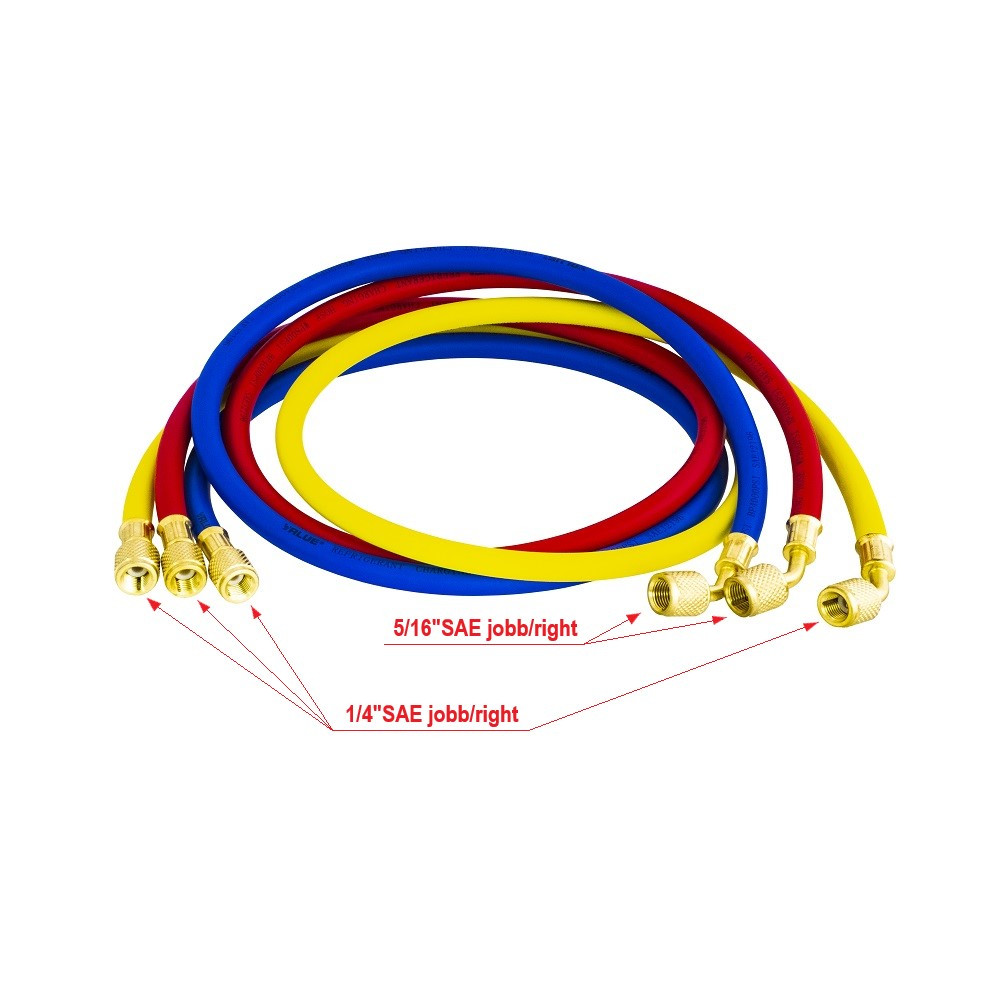

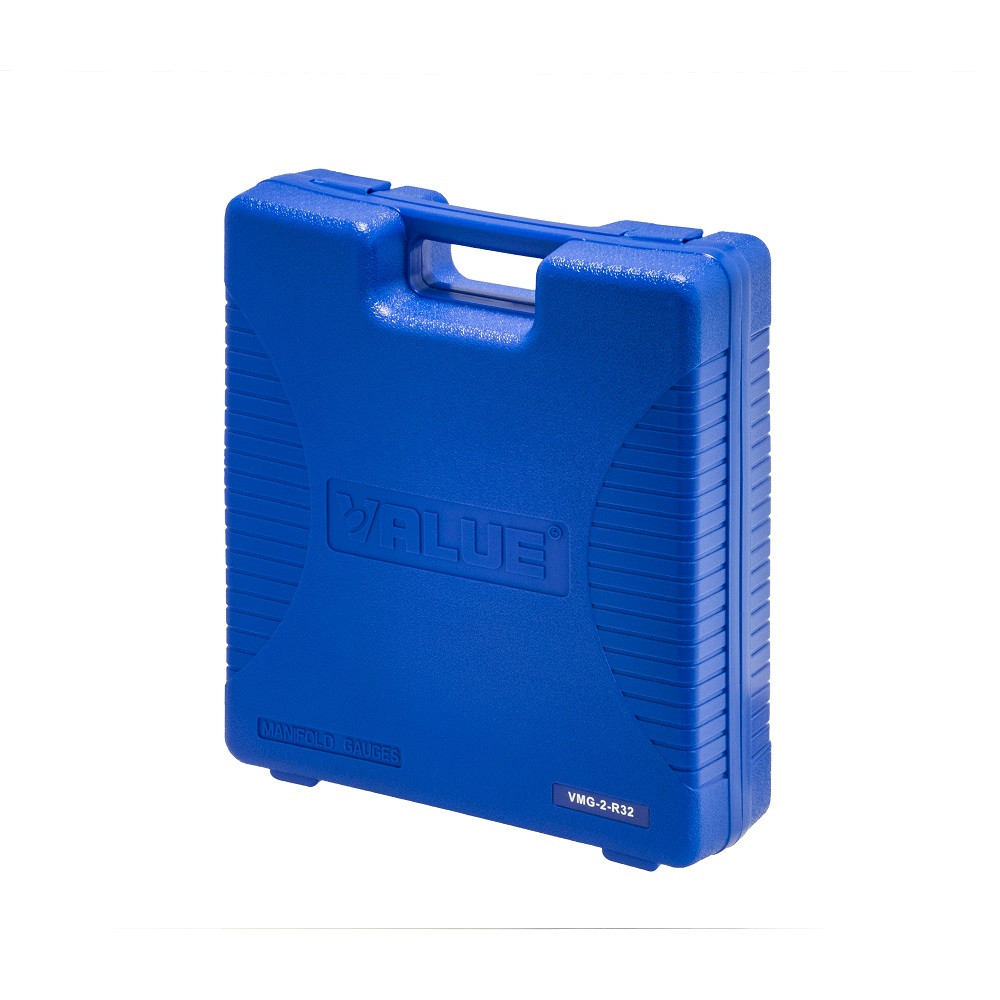

The length of the filling pipes is 150 cm, Red (1/4”-5/16” SAE), Blue (1/4”-5/16” SAE), Yellow (1/4”-1/4” SAE). The entire set comes with an impact-resistant plastic case for safe storage and transport.
The connectors of the filling pipes must be attached manually to the faucet and to the cooling system.
Do not use pliers, in case of overtightening, the Teflon seal may deform, causing leakage.
The taps on the faucet open to the left (counter-clockwise) and close to the right (clockwise).
Do not overload the manometers!
In the event of an overload, its internal structure is damaged, which is not visible from the outside, but affects the work with incorrect measured data.
