Parameters:
Refrigerants: R22, R32, R134A, R290, R404A, , R407A, R407C, R410A, R426A, R427A, R434A, R442A, R448A, R449A, R450A, R452A, R453A, R454B, R507A, R510A, R513A, R600A, R1234YF(=R922B)

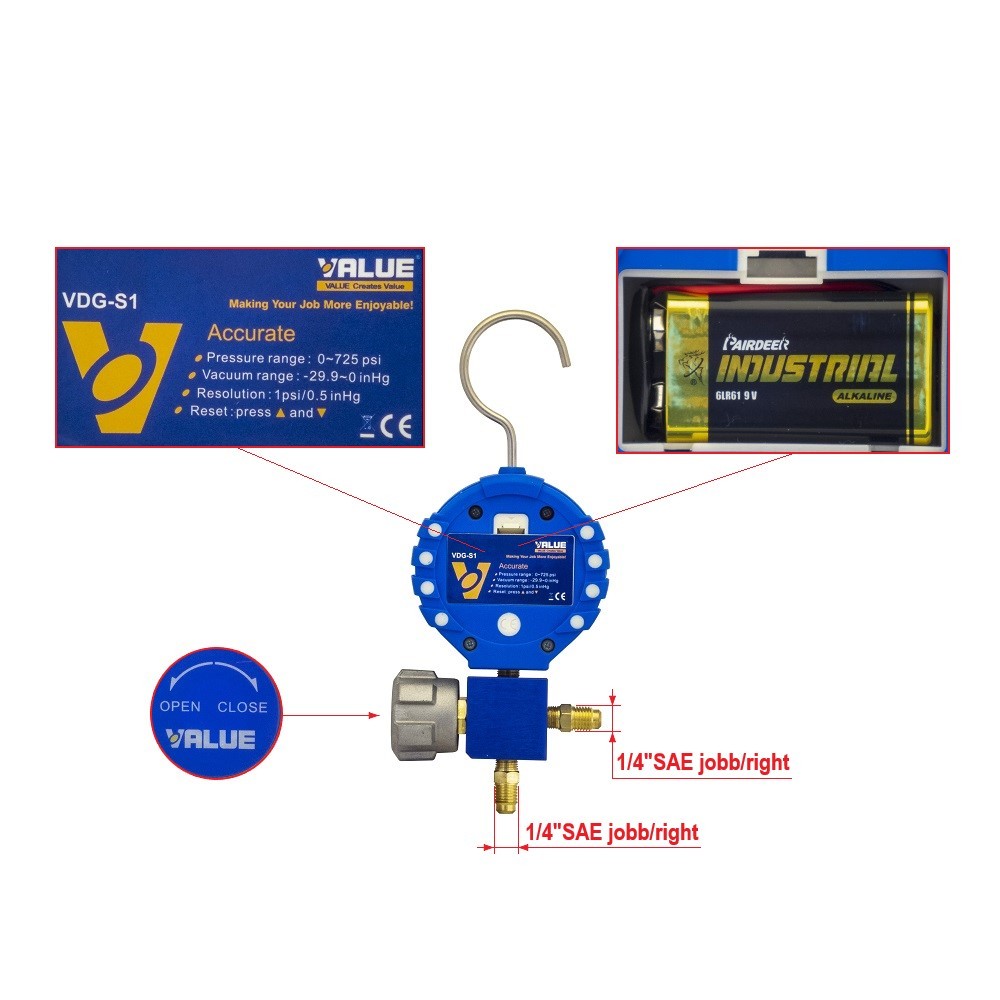

Connection: 2 x 1/4"SAE
Pressure Units psi, bar, KPa, MPa, kgf/cm2
Temperature Units: C°/F°.
Vacuum Unit: inHg
Pressure Scale (Relative Pressure): 0-50 bar; 0-725 psi; 0-5000 KPa; 0-5 Mpa; 0-51 kgf/cm2
Vacuum Scale: -29,5~0 inHg
Maximum Over Pressure: 75bar; 750kPa; 7,5Mpa; 1087psi; 76,5kgf/cm²
Pressure Resolution: 1 psi / 0,1 bar / 10 KPa / 0,01 Mpa / 0,1 kgf/cm2
Vacuum Resolution: 0,5 inHg
Pressure Measure Precision (at 22°C/72°F): ±2 psi / ±0,2 bar / ±20 KPa / ±0,02 MPa / ±0,2 kgf/cm2
Vacuum Measure Precision (at 22°C/72°F-on): ±1 inHg
Operation Temperature: -10~50°C/14~122°F
Storage Temperature: -20~60°C/-4~140°F
Environment Humidity: 10~90% RH
Display: LCD display with backlight, Response time: 1 s, Refresh Frequency: 1 s
Súly: 1690 g + packaging

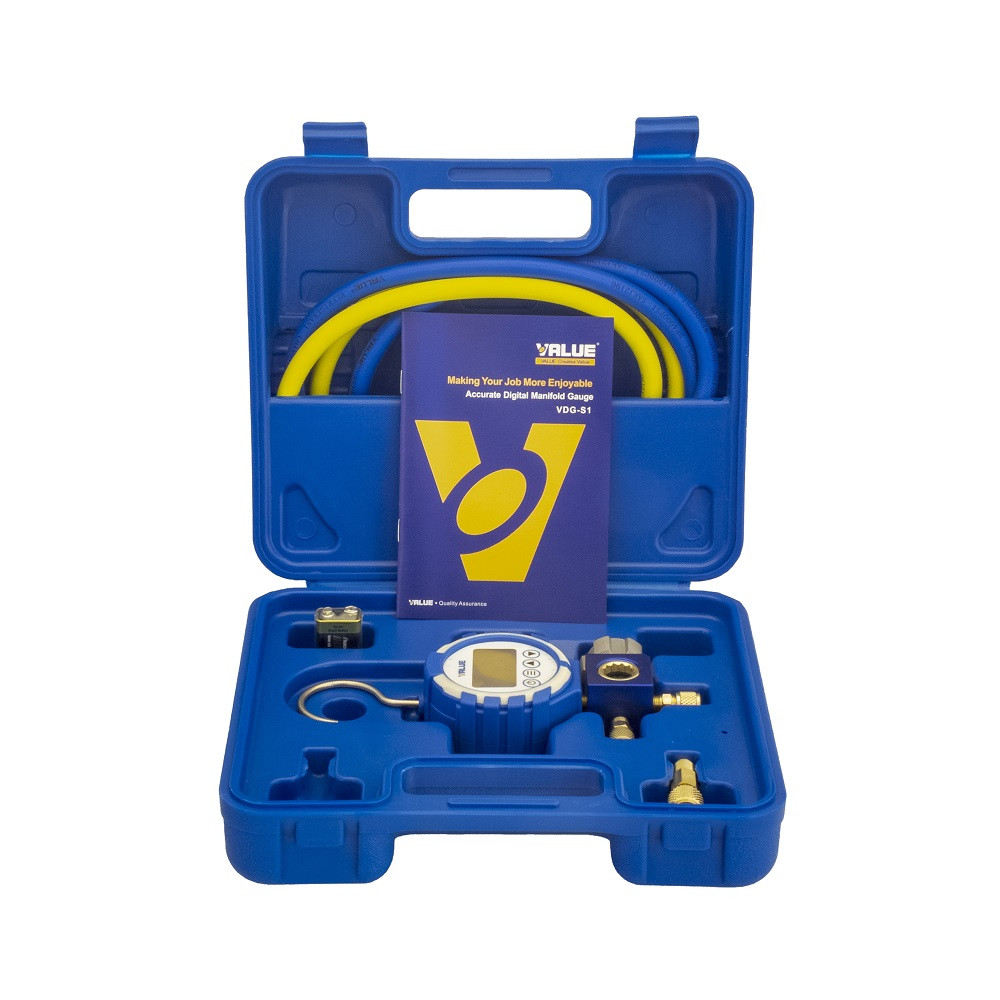

The set includes the following:

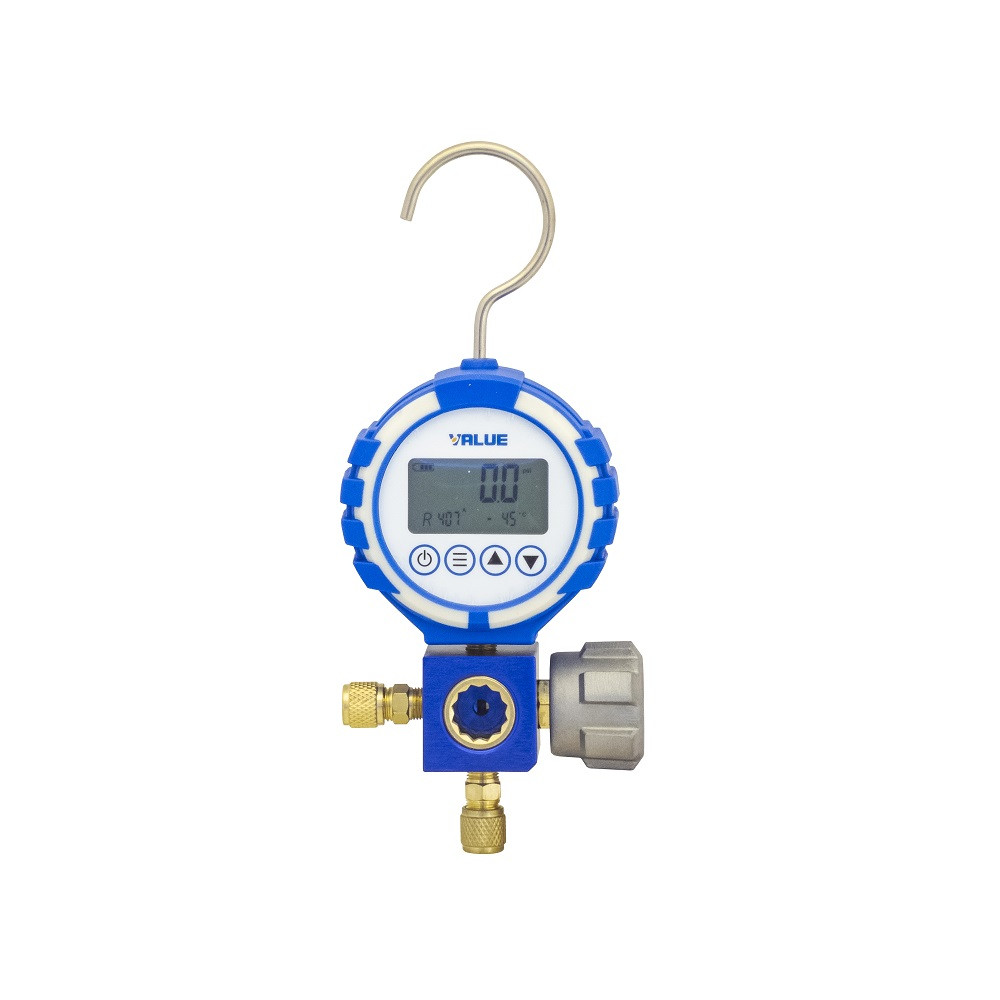

- 1 piece of VDG-S1 digital manifold gauge

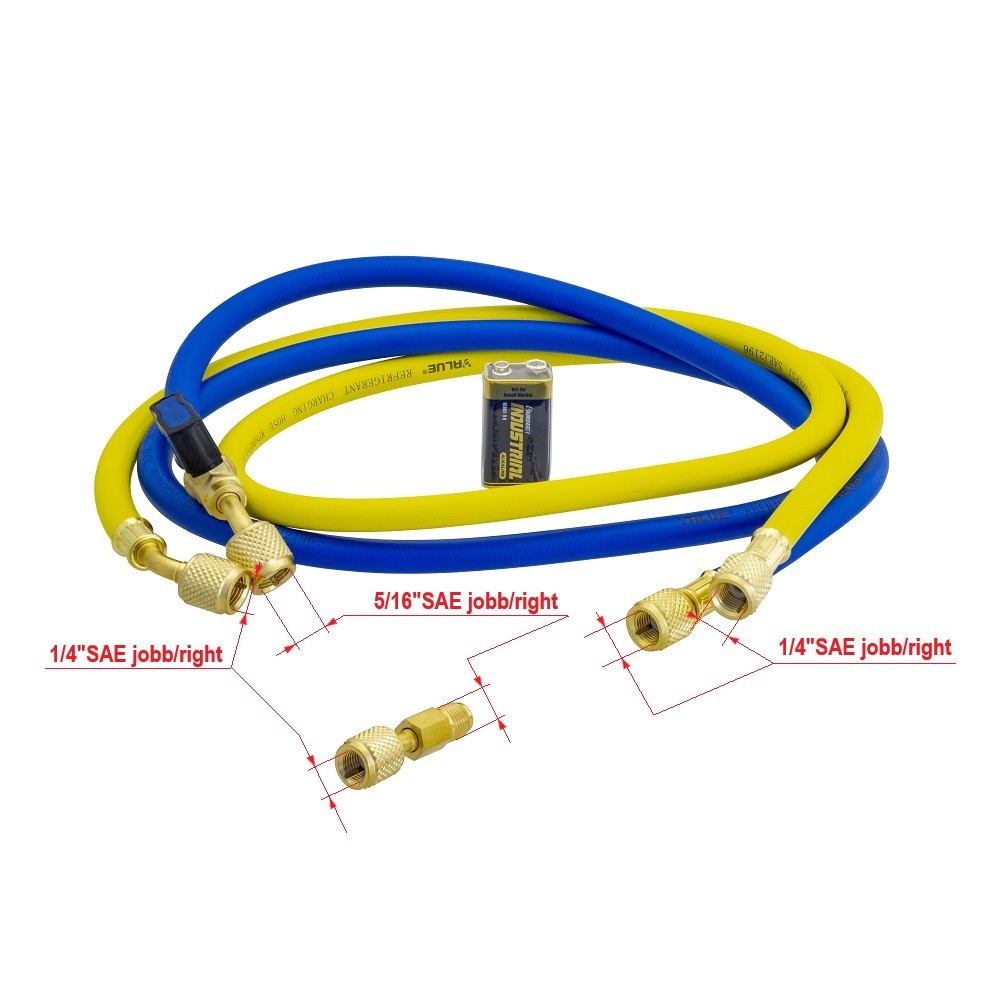

- 1 piece of 120 cm long blue filling tube ( 1/4"SAE 180° - 5/16"SAE 60° with valve)
- 1 piece of 120 cm long yellow filling tube ( 1/4"SAE 180° - 1/4"SAE 60°)
- 1 piece of 180° Thread Reducer V06 (5/16"SAE male - 1/4"SAE female)
- 1 piece of 9V battery
- 1 piece of impact-resistant plastic manifold suitcase
Not suitable for measuring ammonia (R717)!
