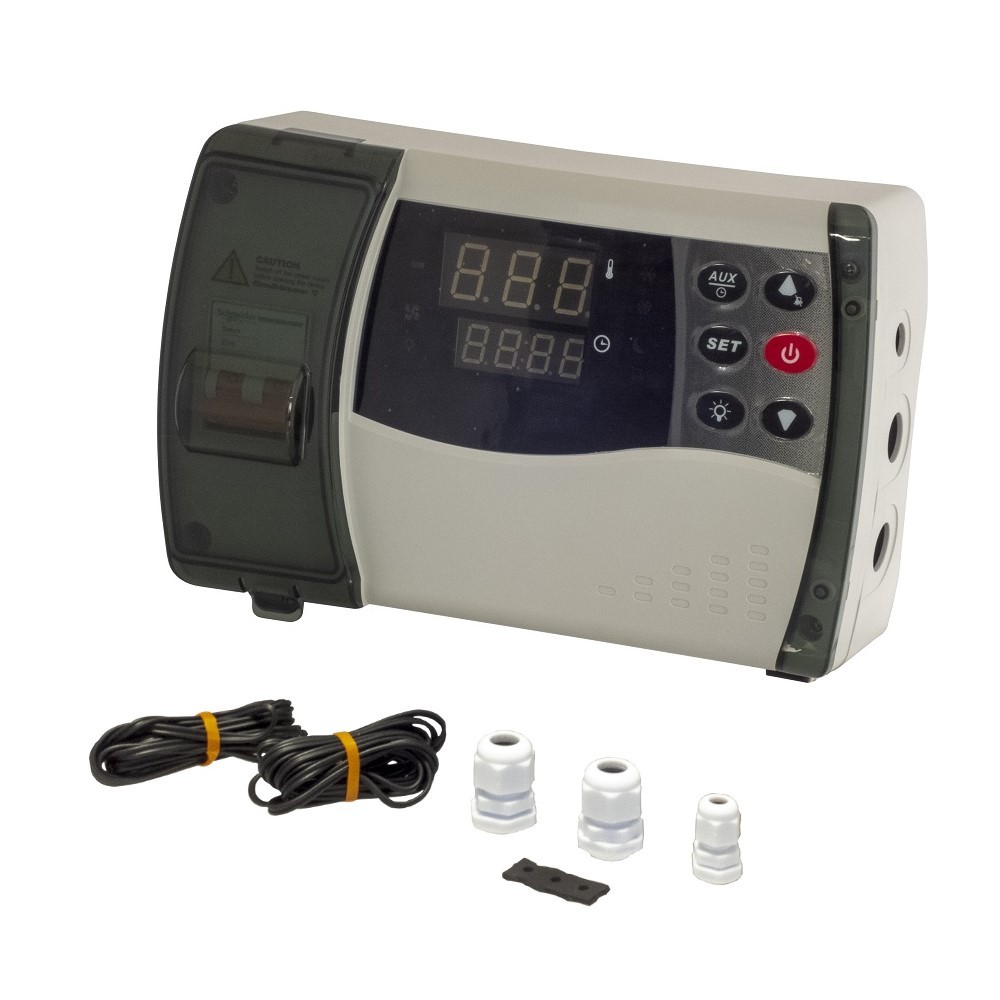

Temperature Controller ECB-1000Q

The ECB-1000Q digital thermostat is widely used for small and medium-sized cold storage. The device has a cooling and freezing function, a fan and lighting control, as well as an alarm and time display.

Features:

Big screen, blue digital tube, show all necessary information
Directly drive single-phase compressor 3HP
LED status indicator light
Password protection, avoid misoperation by personnel
Real-Time Clock, could display time and control defrost
Forced defrost function
Night saving function

Learn more

Out of stock

191.88 € (151.08 €+40.79 €VAT)

Out of stock

Points earned after purchase: 5.76 €

Details

Technical parameters:

Power Supply: 220VAC±10%, 50/60Hz
Power Consumption: Kevesebb, mint 5W
Temperature Measuring Time: -45°C ~ 99°C
Accuracy: ±1°C
Temperature Controlling Range: -40°C ~ 90°C
Resolution: 0.1°C/1°C or 1°F
Relay Capacity:
- Compresszor: 50A/240VAC (Max capacity of controlling the compressor: 2P)
- Defrost: 8A/220VAC
- Fan: 5A/220VAC (Max capacity of controlling the fan: 500W)
- Light: 5A/220VAC (Max capacity of controlling the light: 300W)
Alarm: 5A/220VAC
Storage Temperature: -20°C ~ 75°C
Work Temperature: -5°C ~ +60°C
Sensor Type: NTC (10kΩ/25°C, B-3435K)

Item number:

Weight:

1.415 kg/db
